Individual hose record

4I-3981 Hose Repair Specifications

Excavator · Caterpillar · CAT®315C · Pedal

Finished length2,750 mm

Locate this hose

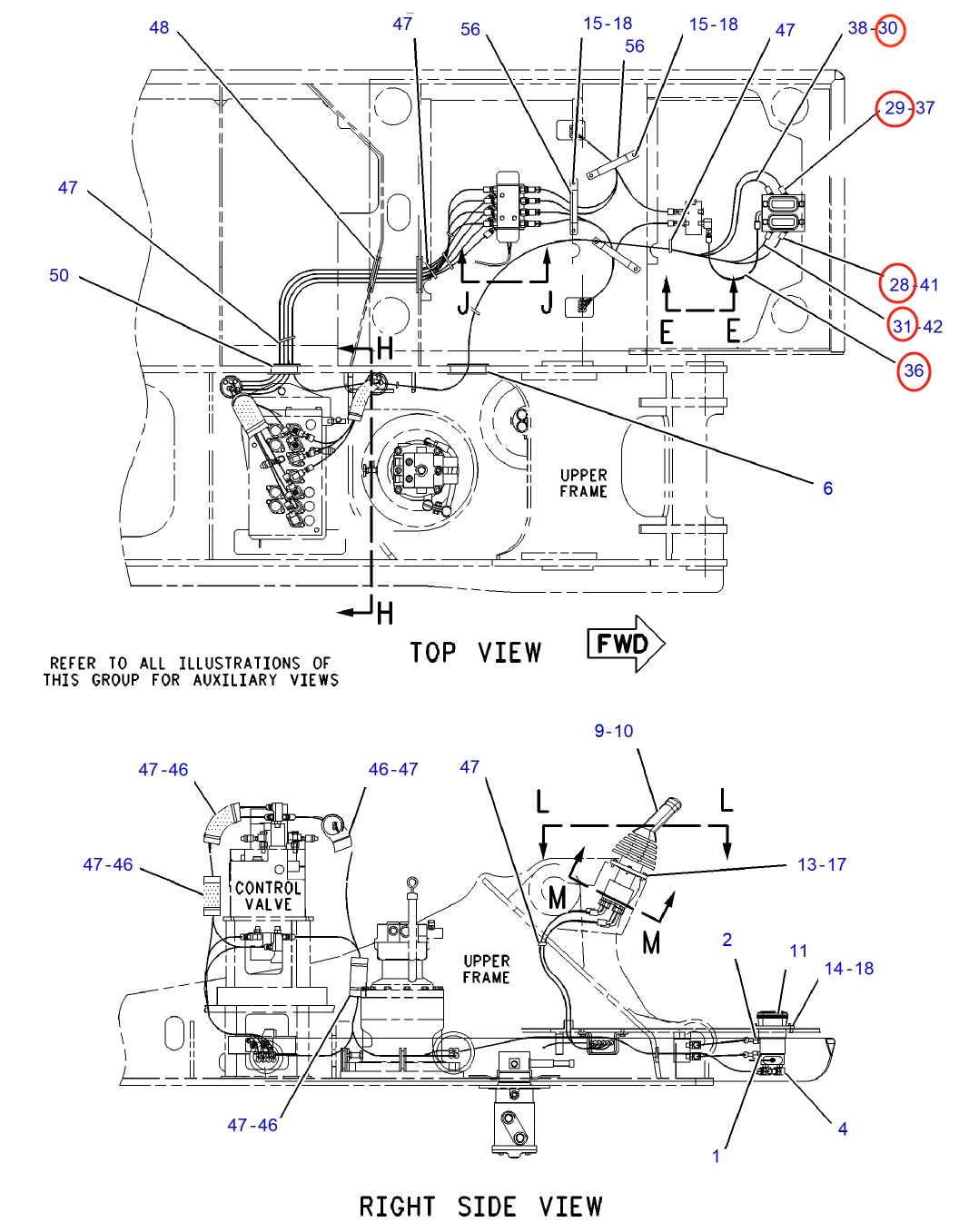

Installation diagram — Pipe No. 28

Locate Pipe No. 28 in the diagram, then confirm part number 4I-3981 before removing the hose.

Part number: 4I-3981
Diagram pipe number: 28
Installation route: 行走踏板~分配阀
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 2,750 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 15

Installation route: 行走踏板~中转接头(踏板)

Length: 290 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 9

Installation route: 中转接头(踏板)~分配阀上右

Length: 3,000 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 10

Installation route: 中转接头(踏板)~分配阀下

Length: 2,350 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 31

Installation route: 行走踏板~分配阀

Length: 2,200 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 30

Installation route: 行走踏板~分配阀

Length: 2,350 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 29

Installation route: 行走踏板~分配阀

Length: 2,900 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
