Individual hose record
361-8969 Hose Repair Specifications
Excavator · Caterpillar · CAT®316F L · Hydraulic Pump
Finished length2,030 mm
Locate this hose

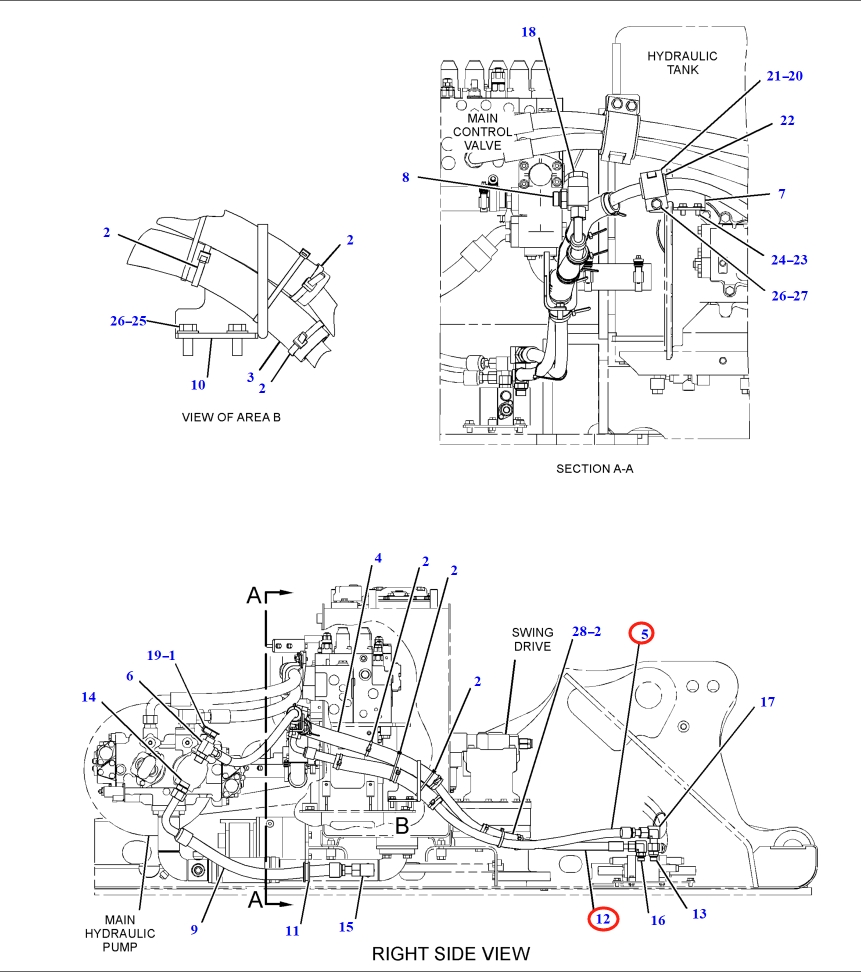

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 361-8969 before removing the hose.
Repair specifications
- Part number
- 361-8969
- Diagram pipe number
- 12
- Installation route
- 液压泵上~控制阀(回转接头右)
- Hose specification
- DN16;4SP-10;28Mpa
- Finished length
- 2,030 mm
- Working pressure
- 28 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
