Individual hose record
8U-1638 Hose Repair Specifications
Excavator · Caterpillar · CAT®214B · Solenoid Valve
Finished length1,256 mm
Locate this hose

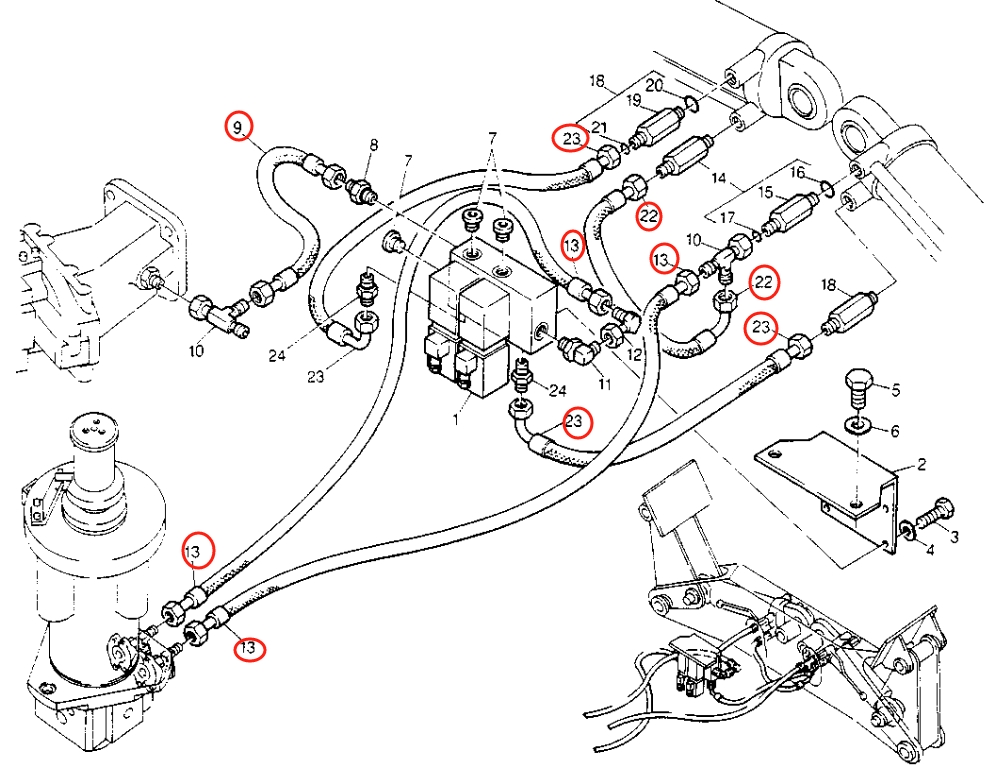

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 8U-1638 before removing the hose.
Repair specifications
- Part number
- 8U-1638
- Diagram pipe number
- 9
- Installation route
- 电磁阀~
- Hose specification
- DN10;2SN-6;33Mpa
- Finished length
- 1,256 mm
- Working pressure
- 33 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
