Individual hose record

8S-1162 Hose Repair Specifications

Excavator · Caterpillar · CAT®231D · Hydraulic Tank

Finished length749 mm

Locate this hose

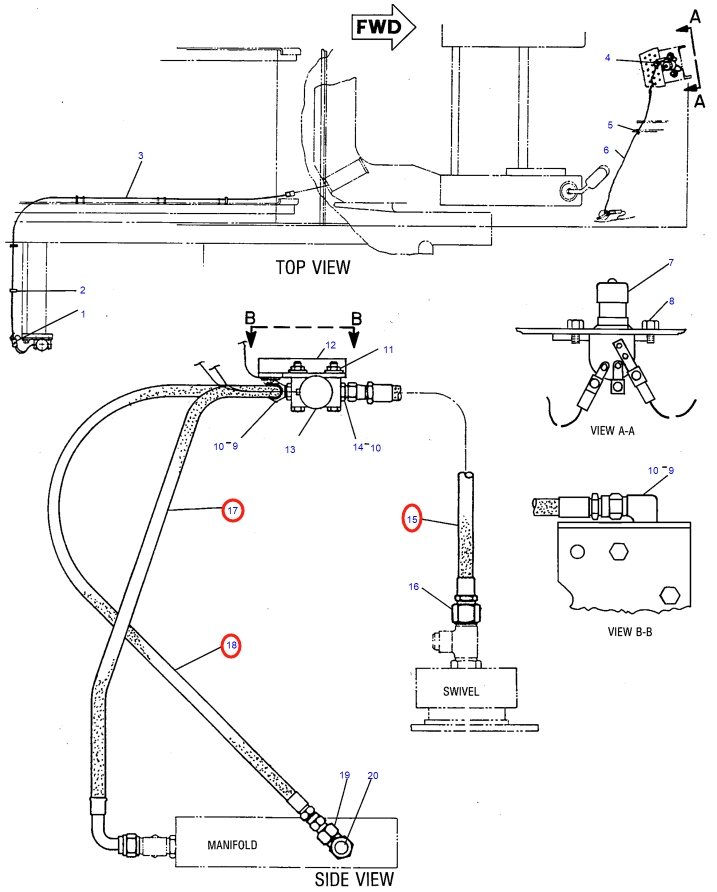

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number 8S-1162 before removing the hose.

Caterpillar CAT®231D installation diagram showing hydraulic hose 8S-1162 at Pipe No. 18 — Caterpillar CAT®231DPart 8S-1162 · Pipe No. 18Open full-size diagram

Repair specifications

Part number: 8S-1162
Diagram pipe number: 18
Installation route: 液压油箱~电磁阀(回转马达左)
Hose specification: DN10;1SN-6;15.7Mpa
Finished length: 749 mm
Working pressure: 15.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
