Individual hose record

5C-3426 Hose Repair Specifications

Excavator · Caterpillar · CAT®219D · Control Lever

Finished length520 mm

Locate this hose

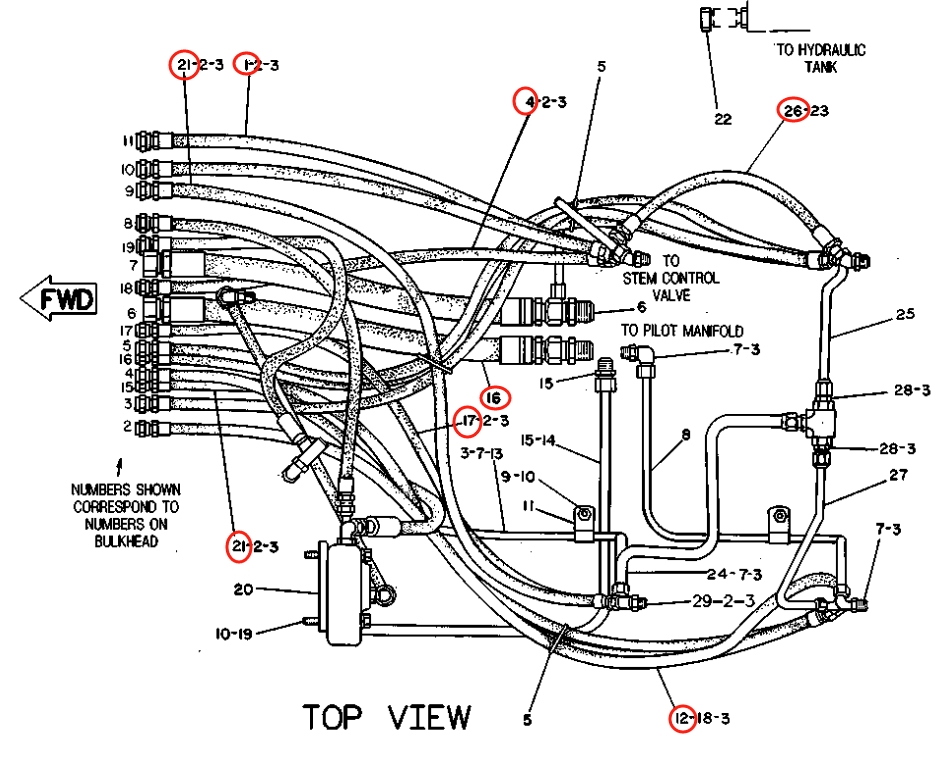

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 5C-3426 before removing the hose.

Caterpillar CAT®219D installation diagram showing hydraulic hose 5C-3426 at Pipe No. 16 — Caterpillar CAT®219DPart 5C-3426 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: 5C-3426
Diagram pipe number: 16
Installation route: 中转接头~回油铁管
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 520 mm
Working pressure: 8.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 7

8R-0944

Installation route: 左手柄~中转接头

Length: 687 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 12

8R-0944

Installation route: 右手柄~中转接头

Length: 687 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
