Individual hose record

DS2092304 Hose Repair Specifications

Excavator · Doosan · E57W · Control Valve

Finished length1,160 mm

Locate this hose

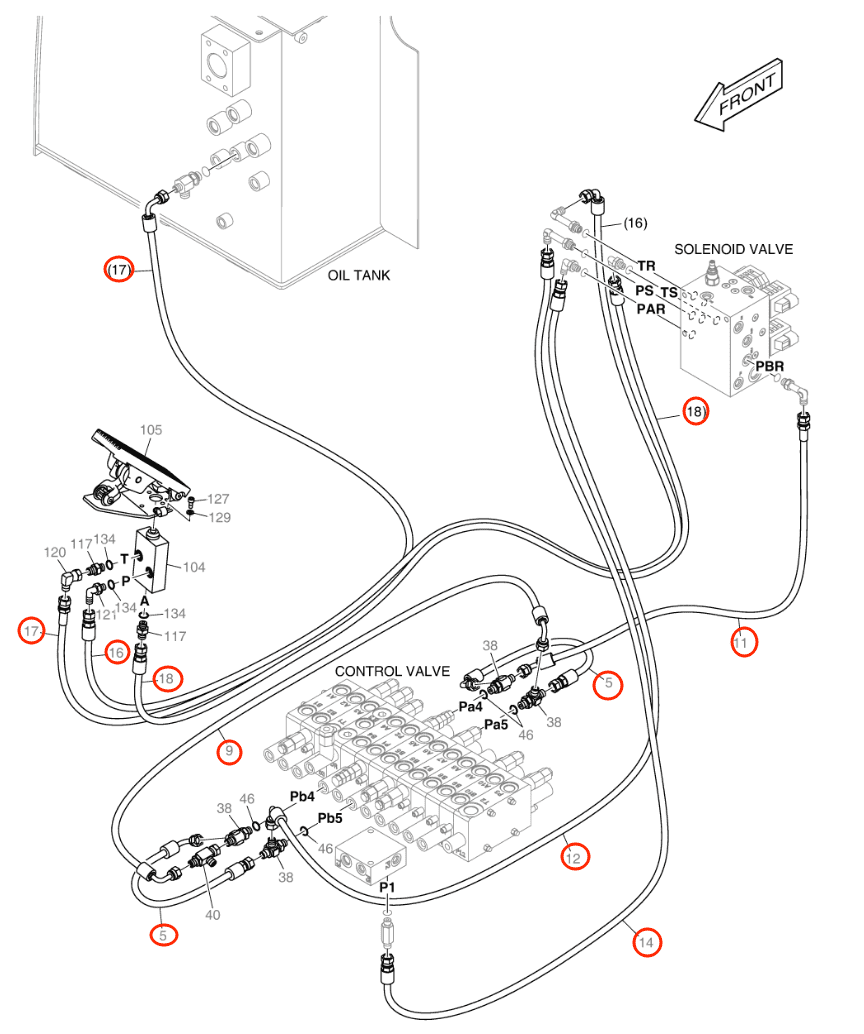

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number DS2092304 before removing the hose.

Part number: DS2092304
Diagram pipe number: 11
Installation route: 分配阀PA4口~电磁阀PBR口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,160 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 105

Installation route: 分配阀PB1口~分配阀PB6口

Length: 280 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 6

Installation route: 分配阀PA10口~电磁阀OA口

Length: 540 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
