Individual hose record

KNJ2767 Hose Repair Specifications

Excavator · Case · CX130 · Hydraulic Tank

Finished length520 mm

Locate this hose

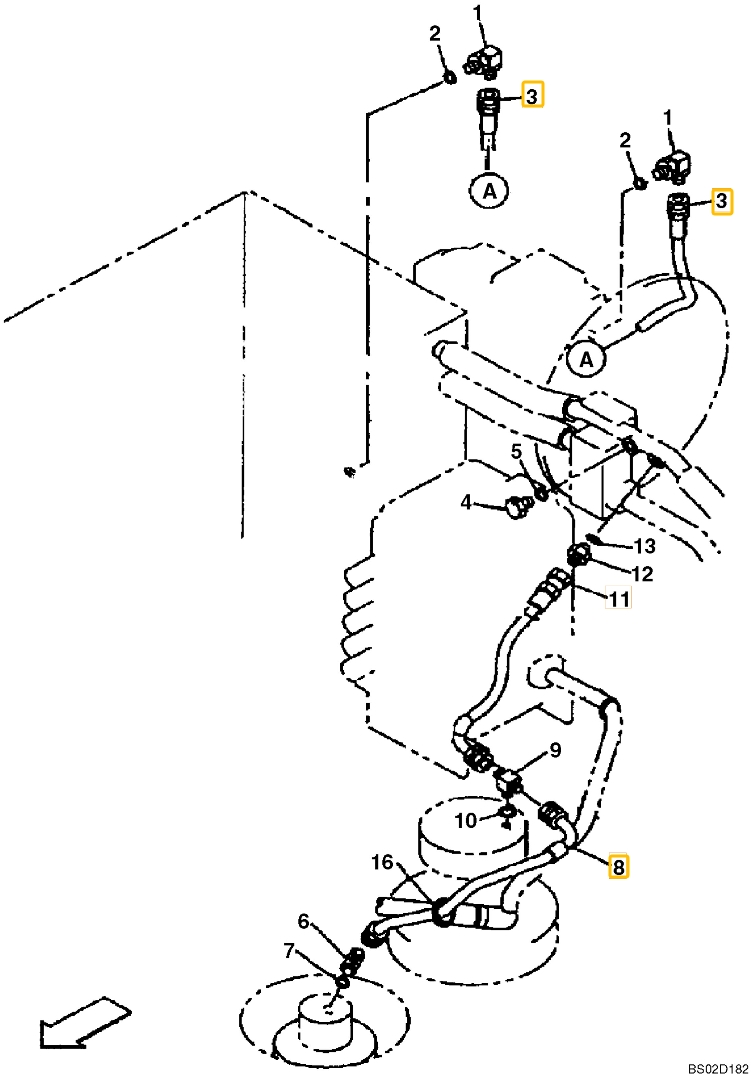

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number KNJ2767 before removing the hose.

Part number: KNJ2767
Diagram pipe number: 11
Installation route: 回转马达上~回油铁管(液压油箱)
Hose specification: DN13;1SN-08;16MPa
Finished length: 520 mm
Working pressure: 16 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 14

Installation route: 回转马达上~回油铁管(液压油箱)

Length: 400 mm
Specification: DN19;1SN-12;10.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 19

Installation route: 液压油箱~液压油滤清器

Length: 2,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
