Individual hose record

8K-1691 Hose Repair Specifications

Excavator · Caterpillar · CAT®225 · Hydraulic Pump

Finished length774 mm

Locate this hose

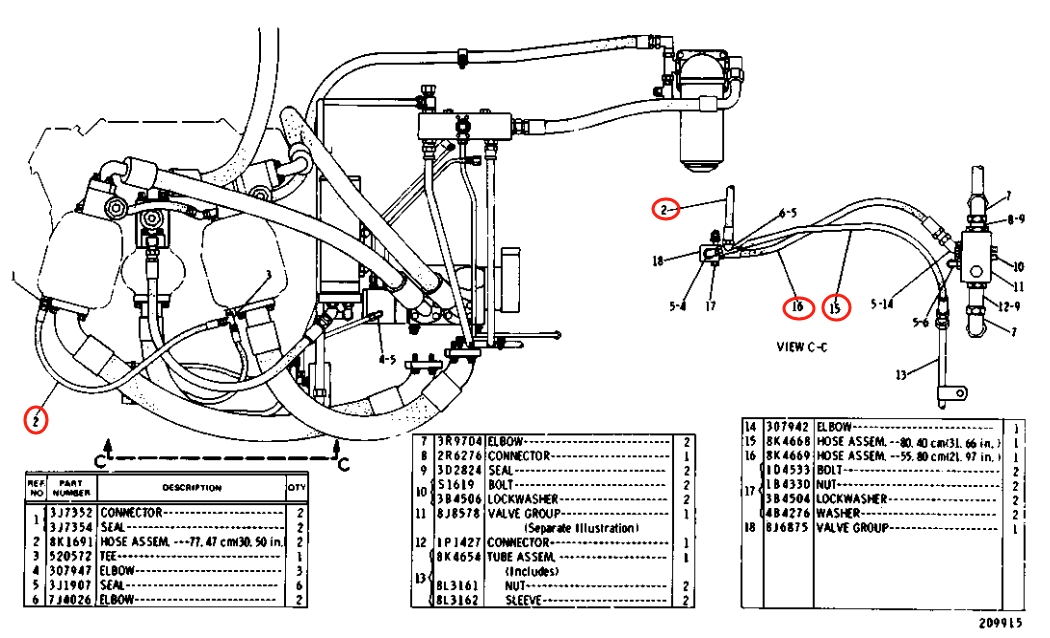

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 8K-1691 before removing the hose.

Caterpillar CAT®225 installation diagram showing hydraulic hose 8K-1691 at Pipe No. 2 — Caterpillar CAT®225Part 8K-1691 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 8K-1691
Diagram pipe number: 2
Installation route: 液压泵(左)~液压泵(右)
Hose specification: DN6;-4;19.2Mpa
Finished length: 774 mm
Working pressure: 19.2 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 10

8K-0973

Installation route: 液压泵~液压泵

Length: 362 mm
Specification: DN13;1SN-8;14Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
