8U-0663 Hose Repair Specifications

Excavator · Caterpillar · CAT®214B · Boom Assembly

Finished length1,090 mm

Locate this hose

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 8U-0663 before removing the hose.

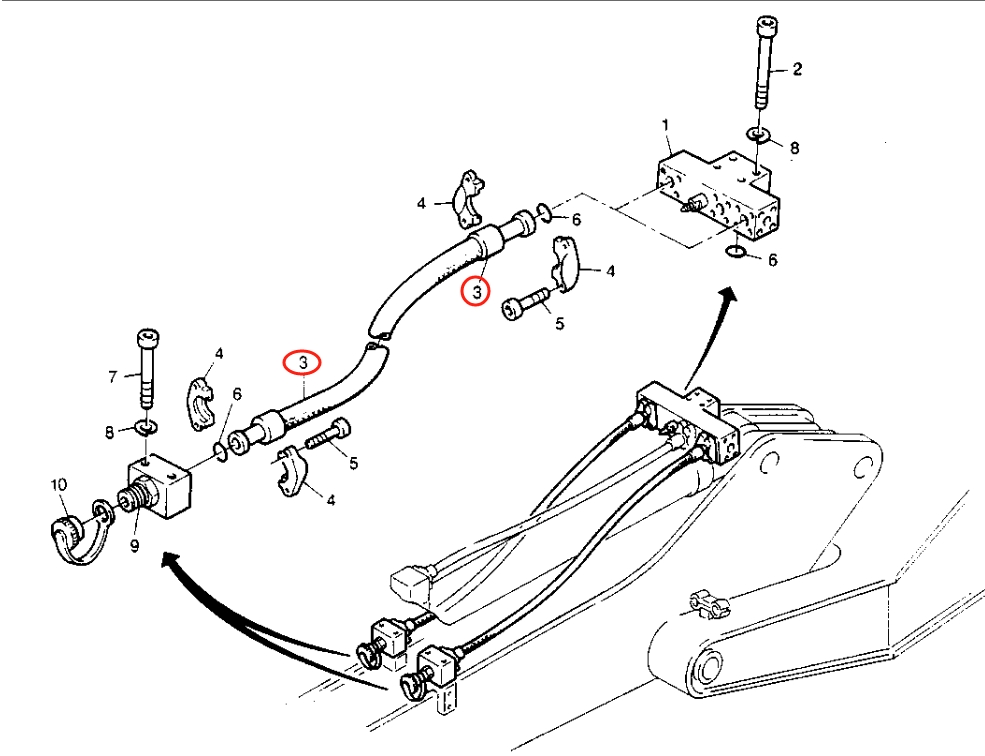

Caterpillar CAT®214B installation diagram showing hydraulic hose 8U-0663 at Pipe No. 3 — Caterpillar CAT®214BPart 8U-0663 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: 8U-0663
Diagram pipe number: 3
Installation route: 铲斗油缸~分流阀(小臂)
Hose specification: DN19;4SP-12;35Mpa
Finished length: 1,090 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 2

Same system
