Individual hose record
4286505 Hose Repair Specifications
Excavator · Hitachi · ZX290LC-5G · Swing Motor
Finished length800 mm
Locate this hose

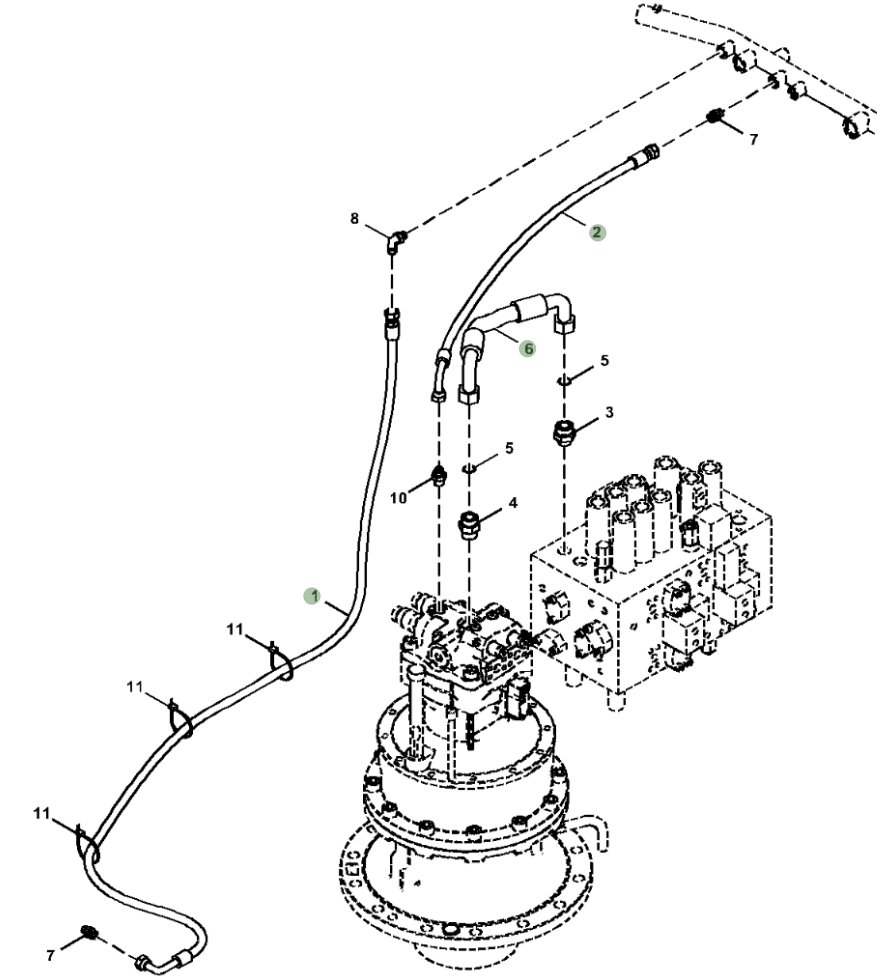

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4286505 before removing the hose.
Repair specifications
- Part number
- 4286505
- Diagram pipe number
- 2
- Installation route
- Swing motor → return steel line (hydraulic tank)Original Chinese: 回转马达~回油铁管(液压油箱)
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 800 mm
- Working pressure
- 16 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
