Individual hose record
DS2092267 Hose Repair Specifications
Excavator · Doosan · E57W · Swivel Joint
Finished length480 mm
Locate this hose

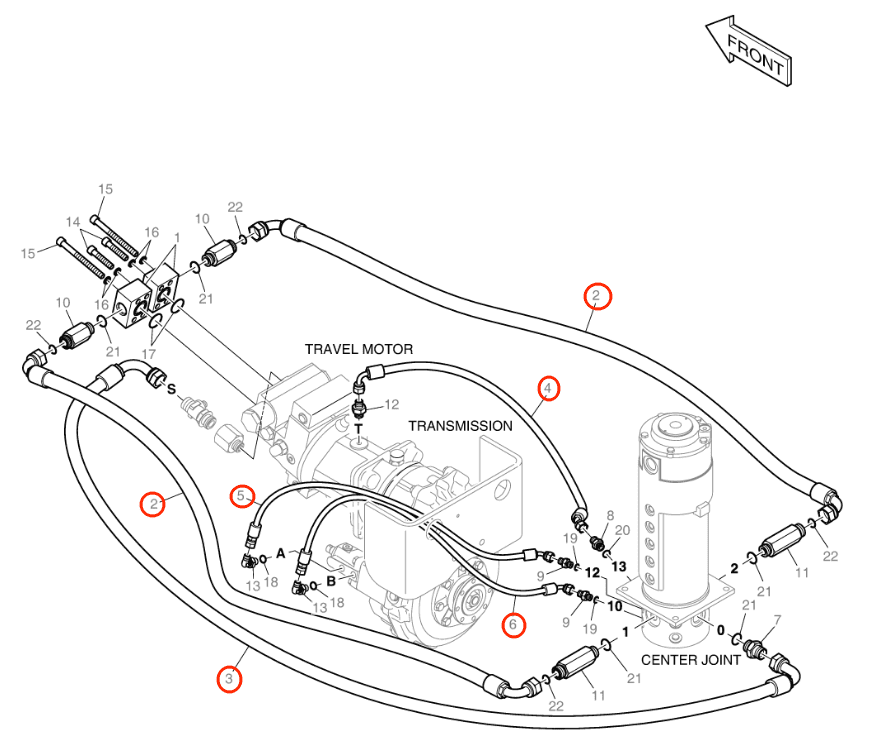

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number DS2092267 before removing the hose.
Repair specifications
- Part number
- DS2092267
- Diagram pipe number
- 5
- Installation route
- 回转接头12口~行走马达A口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 480 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
