Individual hose record
156-6693 Hose Repair Specifications
Excavator · Caterpillar · CAT®317B L · Attachments – Breaker
Finished length1,020 mm
Locate this hose

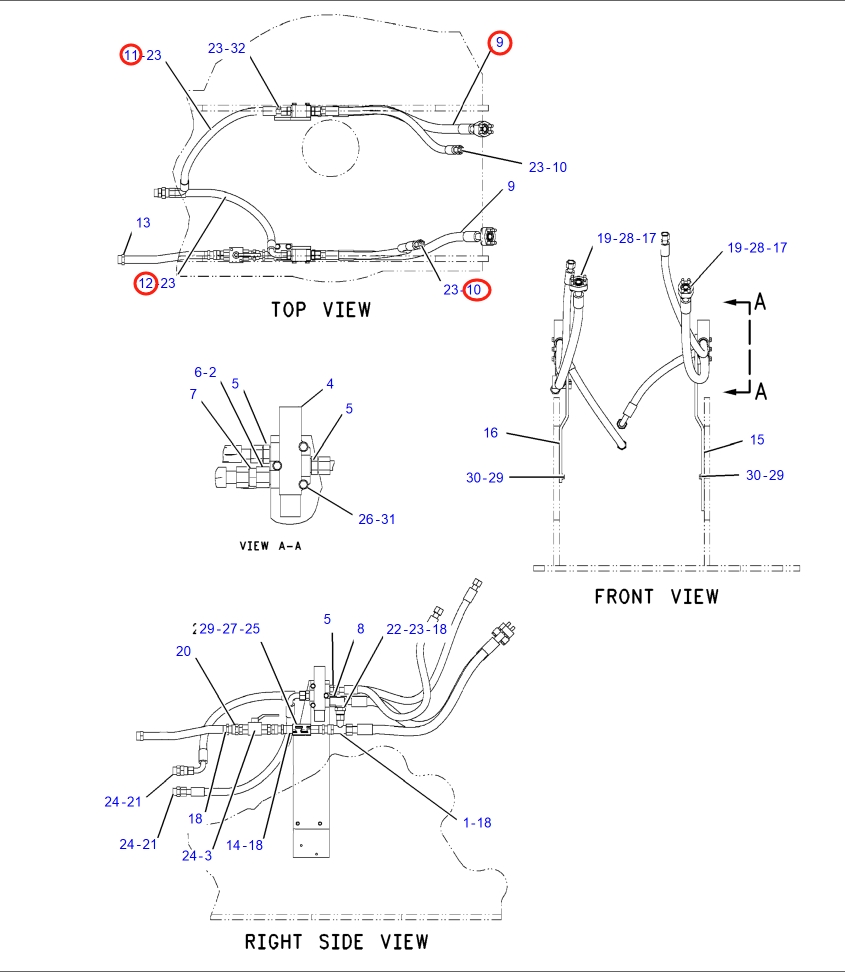

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number 156-6693 before removing the hose.
Repair specifications
- Part number
- 156-6693
- Diagram pipe number
- 10
- Installation route
- 大臂(附加装置)~过渡阀块(破碎器)
- Hose specification
- DN19;4SP-12;35Mpa
- Finished length
- 1,020 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
