Individual hose record

5I-3127 Hose Repair Specifications

Excavator · Caterpillar · CAT®317 N · Swivel Joint

Finished length1,900 mm

Locate this hose

Installation diagram — Pipe No. 25

Locate Pipe No. 25 in the diagram, then confirm part number 5I-3127 before removing the hose.

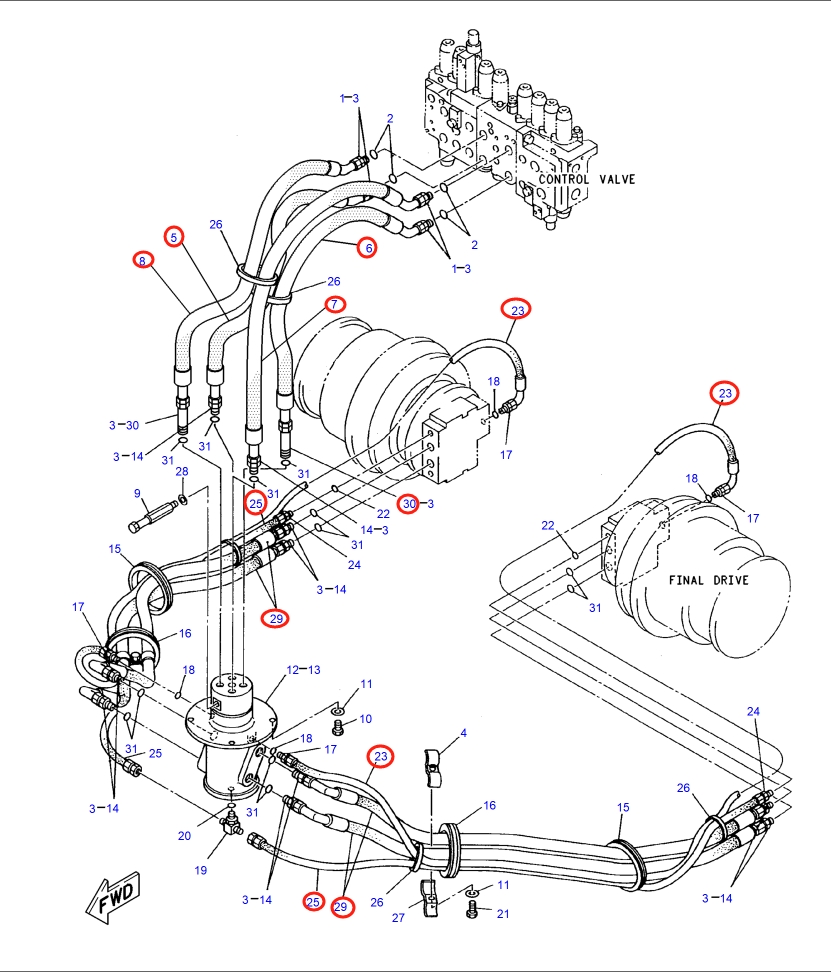

Caterpillar CAT®317 N installation diagram showing hydraulic hose 5I-3127 at Pipe No. 25 — Caterpillar CAT®317 NPart 5I-3127 · Pipe No. 25Open full-size diagram

Repair specifications

Part number: 5I-3127
Diagram pipe number: 25
Installation route: 回转接头~行走马达(规格1)
Hose specification: DN10;-6;10.3Mpa
Finished length: 1,900 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

For reference only. Confirm the actual hose before fabrication.
