Individual hose record

6W-2445 Hose Repair Specifications

Excavator · Caterpillar · CAT®225B · Swivel Joint

Finished length1,850 mm

Locate this hose

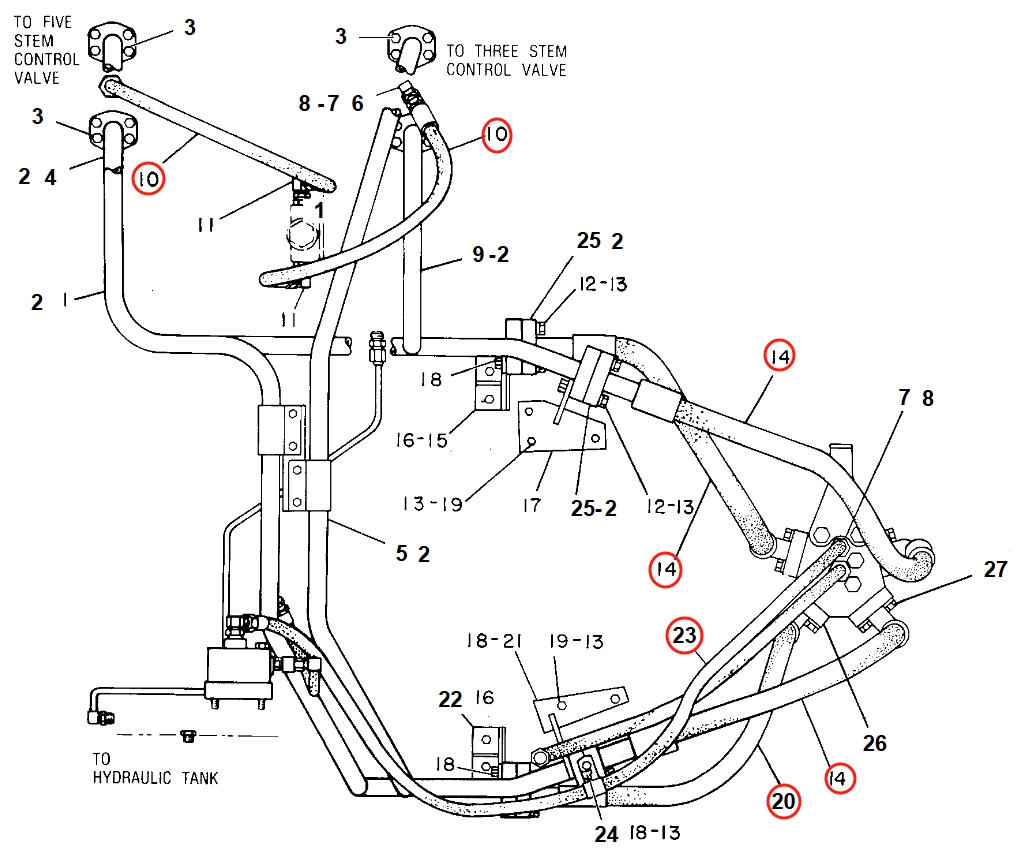

Installation diagram — Pipe No. 23

Locate Pipe No. 23 in the diagram, then confirm part number 6W-2445 before removing the hose.

Caterpillar CAT®225B installation diagram showing hydraulic hose 6W-2445 at Pipe No. 23 — Caterpillar CAT®225BPart 6W-2445 · Pipe No. 23Open full-size diagram

Repair specifications

Part number: 6W-2445
Diagram pipe number: 23
Installation route: 回转接头~制动器阀
Hose specification: DN13;1SN-8;14Mpa
Finished length: 1,850 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
