Individual hose record
4701227 Hose Repair Specifications
Excavator · Hitachi · ZX470LC-5B · Swivel Joint
Finished length2,750 mm
Locate this hose

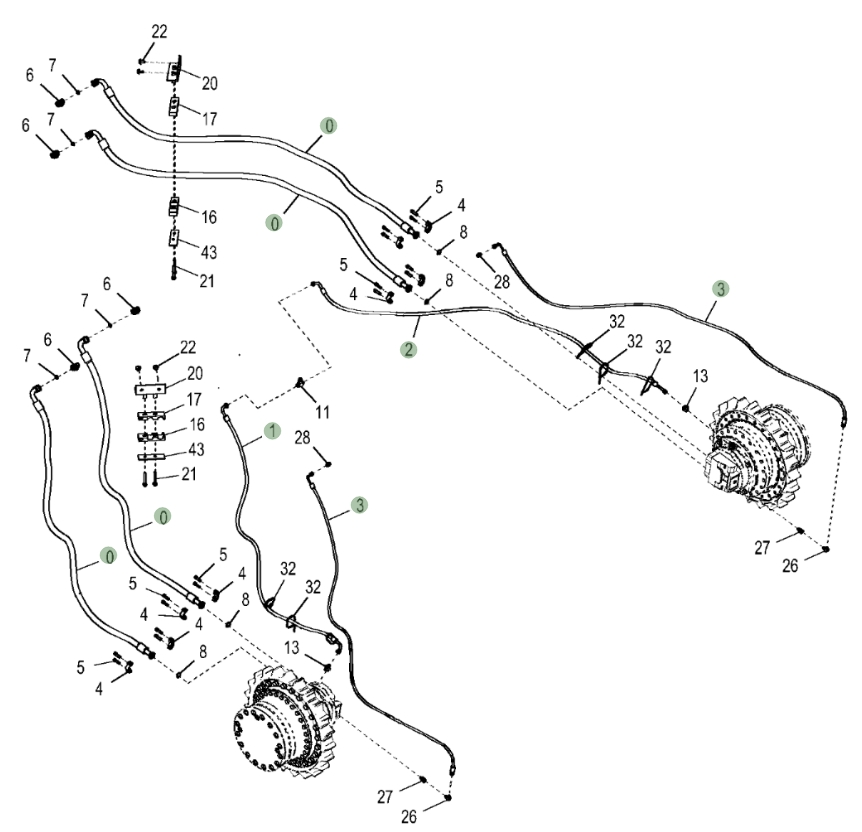

Installation diagram — Pipe No. 0
Locate Pipe No. 0 in the diagram, then confirm part number 4701227 before removing the hose.
Repair specifications
- Part number
- 4701227
- Diagram pipe number
- 0
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN25;4SP-16;35Mpa
- Finished length
- 2,750 mm
- Working pressure
- 35 MPa
- Left fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 4
