Individual hose record

DS2093026 Hose Preview

Excavator · Doosan · DX140LCR · Swivel Joint

Finished length1,700 mm

Repair specifications

Part number
DS2093026
Diagram pipe number
13
Installation route
Swivel joint port TR2 → solenoid valve port TR2Original Chinese: 回转接头TR2口~电磁阀TR2口
Hose specification
DN6;1SN-04;22.5MPa
Finished length
1,700 mm
Working pressure
22.5 MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity
1

Manual diagrams

Installation and Exploded Views

A red marker identifies a reviewed hose location.

Installation diagram

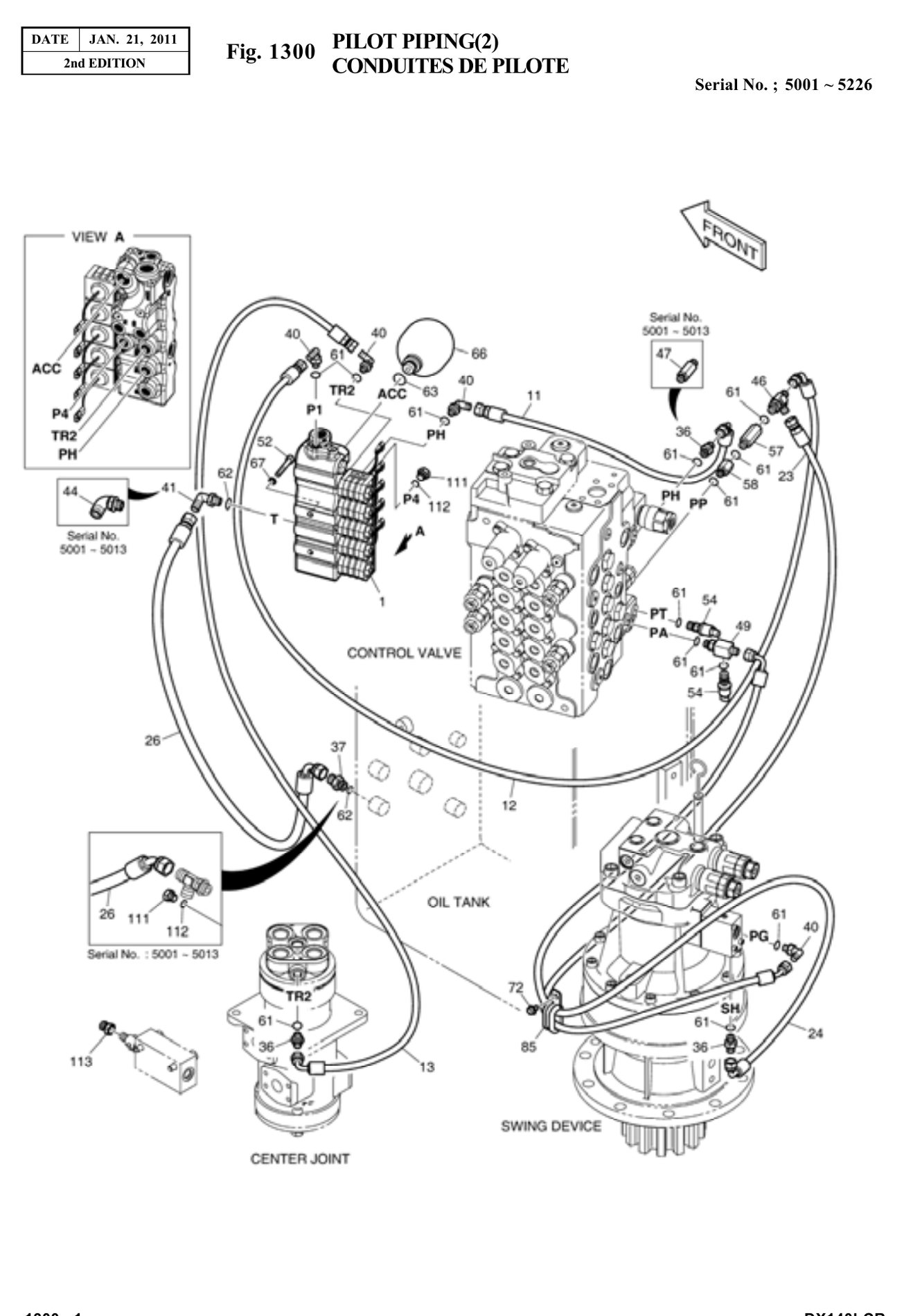

Installation diagramUse this diagram to help identify the hose. Confirm the exact position and pipe number on the machine.Doosan DX140LCR Excavator Parts ManualManual page 166 · Printed page 1300-1 · Fig. 1300View full-size

For reference only. Confirm the actual hose before fabrication.
