Individual hose record

286-6486 Hose Repair Specifications

Excavator · Caterpillar · CAT®313F L · Attachments – Quick Coupler

Finished length430 mm

Locate this hose

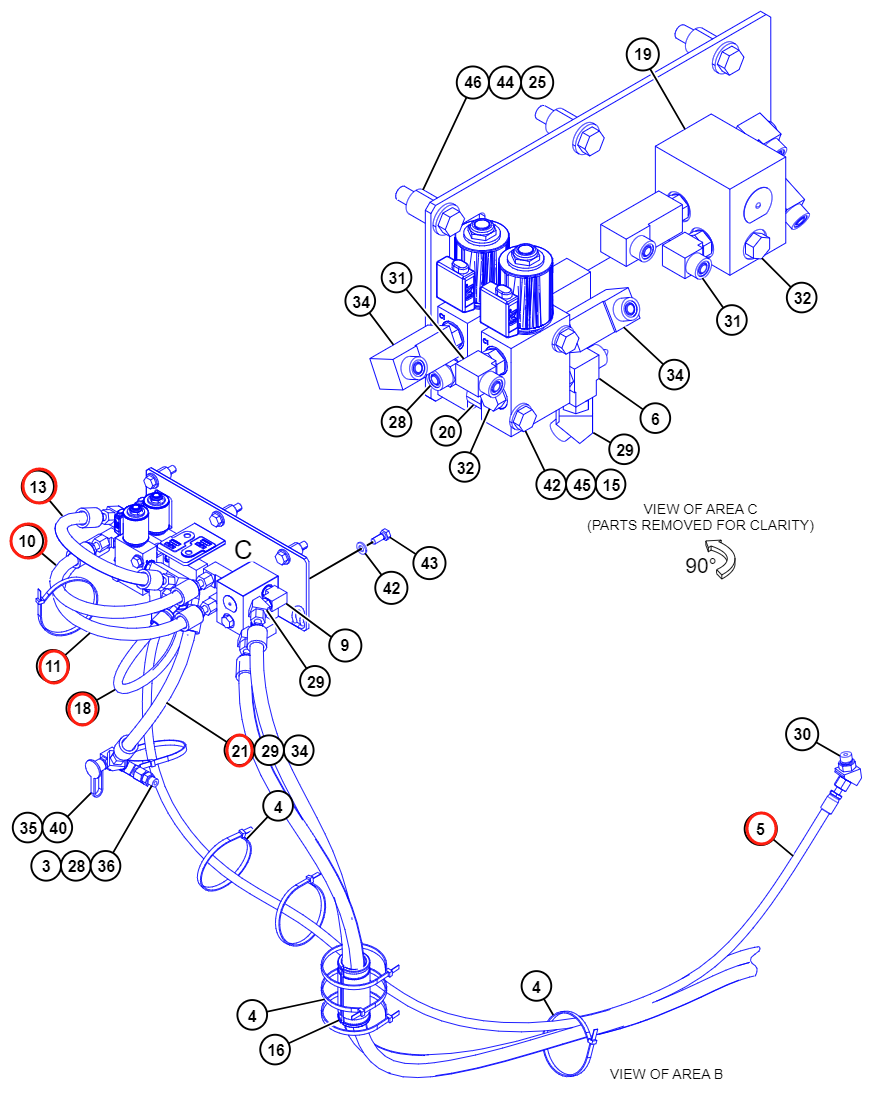

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 286-6486 before removing the hose.

Caterpillar CAT®313F L installation diagram showing hydraulic hose 286-6486 at Pipe No. 13 — **Caterpillar CAT®313F L**Part 286-6486 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 286-6486
Diagram pipe number: 13
Installation route: 快速联轴阀(液压泵上)~快速联轴阀(液压泵上)
Hose specification: DN10;6SH-6;42Mpa
Finished length: 430 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 6

422-2985

Installation route: 小臂接头(快换)~快换装置

Length: 140 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 23

474-9622

Installation route: 大臂(快换)~单向阀(液压泵上)

Length: 3,830 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

187-5954

Installation route: 大臂(快换)~回油铁管(分配阀后)

Length: 1,150 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 24

474-9625

Installation route: 大臂(快换)~单向阀(液压泵上)

Length: 3,800 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 5

104-8783

Installation route: 快速联轴阀(液压泵上)~分配阀下

Length: 2,150 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

382-7079

Installation route: 大臂(快换)~小臂(快换)

Length: 1,580 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 10

266-1194

Installation route: 快速联轴阀(液压泵上)~单向阀(液压泵上)

Length: 460 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

363-2569

Installation route: 大臂(快换)~小臂(快换)

Length: 1,800 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
