Individual hose record

4I-6242 Hose Repair Specifications

Excavator · Caterpillar · CAT®317 N · Pedal

Finished length2,950 mm

Locate this hose

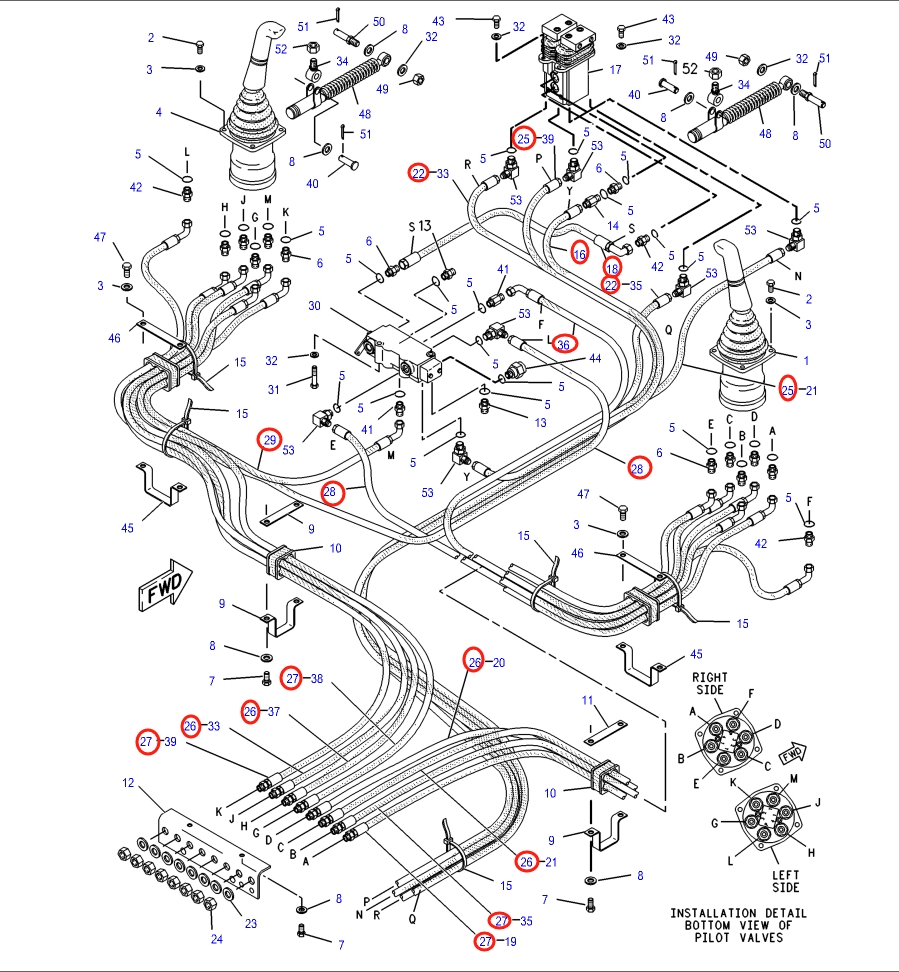

Installation diagram — Pipe No. 25

Locate Pipe No. 25 in the diagram, then confirm part number 4I-6242 before removing the hose.

Caterpillar CAT®317 N installation diagram showing hydraulic hose 4I-6242 at Pipe No. 25 — Caterpillar CAT®317 NPart 4I-6242 · Pipe No. 25Open full-size diagram

Repair specifications

Part number: 4I-6242
Diagram pipe number: 25
Installation route: 行走踏板~分配阀
Hose specification: DN10;-6;10.3Mpa
Finished length: 2,950 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 22

4I-1455

Installation route: 行走踏板~分配阀

Length: 2,330 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 16

4I-1404

Installation route: 行走踏板~进回油阀

Length: 500 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
