Individual hose record

KHJ2085 Hose Repair Specifications

Excavator · Case · CX145D SR W/B · Control Valve

Finished length600 mm

Locate this hose

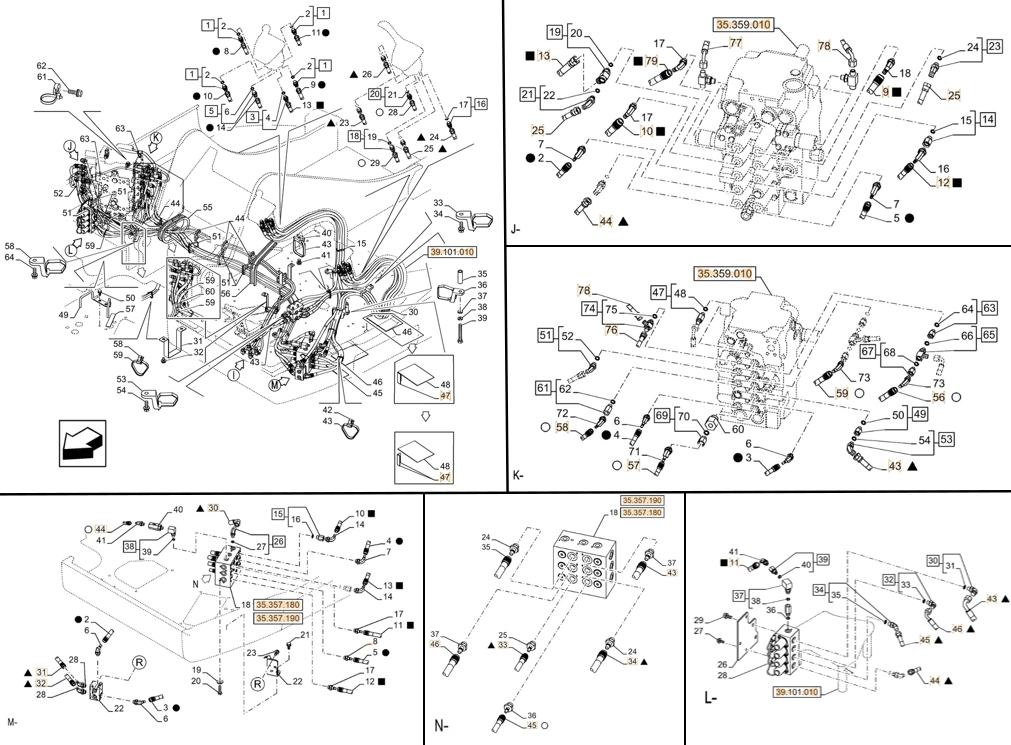

Installation diagram — Pipe No. L46

Locate Pipe No. L46 in the diagram, then confirm part number KHJ2085 before removing the hose.

Part number: KHJ2085
Diagram pipe number: L46
Installation route: 分配阀~电磁阀(分配阀)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 600 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. J25

Installation route: 分配阀右~分配阀右

Length: 420 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 4

Installation route: 分配阀右~分配阀后

Length: 3,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. J78-K78

Installation route: 分配阀左~分配阀前

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. J44-L44

Installation route: 分配阀右~电磁阀

Length: 3,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
