Individual hose record

5W-1880 Hose Repair Specifications

Excavator · Caterpillar · CAT®212 · Hydraulic Pump

Finished length500 mm

Locate this hose

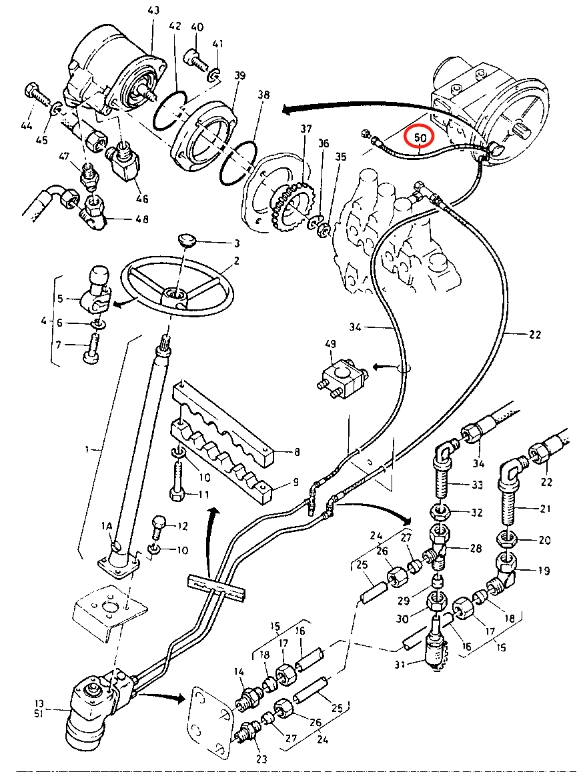

Installation diagram — Pipe No. 50

Locate Pipe No. 50 in the diagram, then confirm part number 5W-1880 before removing the hose.

Caterpillar CAT®212 installation diagram showing hydraulic hose 5W-1880 at Pipe No. 50 — Caterpillar CAT®212Part 5W-1880 · Pipe No. 50Open full-size diagram

Repair specifications

Part number: 5W-1880
Diagram pipe number: 50
Installation route: 液压泵~
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 500 mm
Working pressure: 8.7 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
