351-3993 Hose Repair Specifications

Excavator · Caterpillar · CAT®312E L · Engine Oil Lines

Finished length1,024 mm

Locate this hose

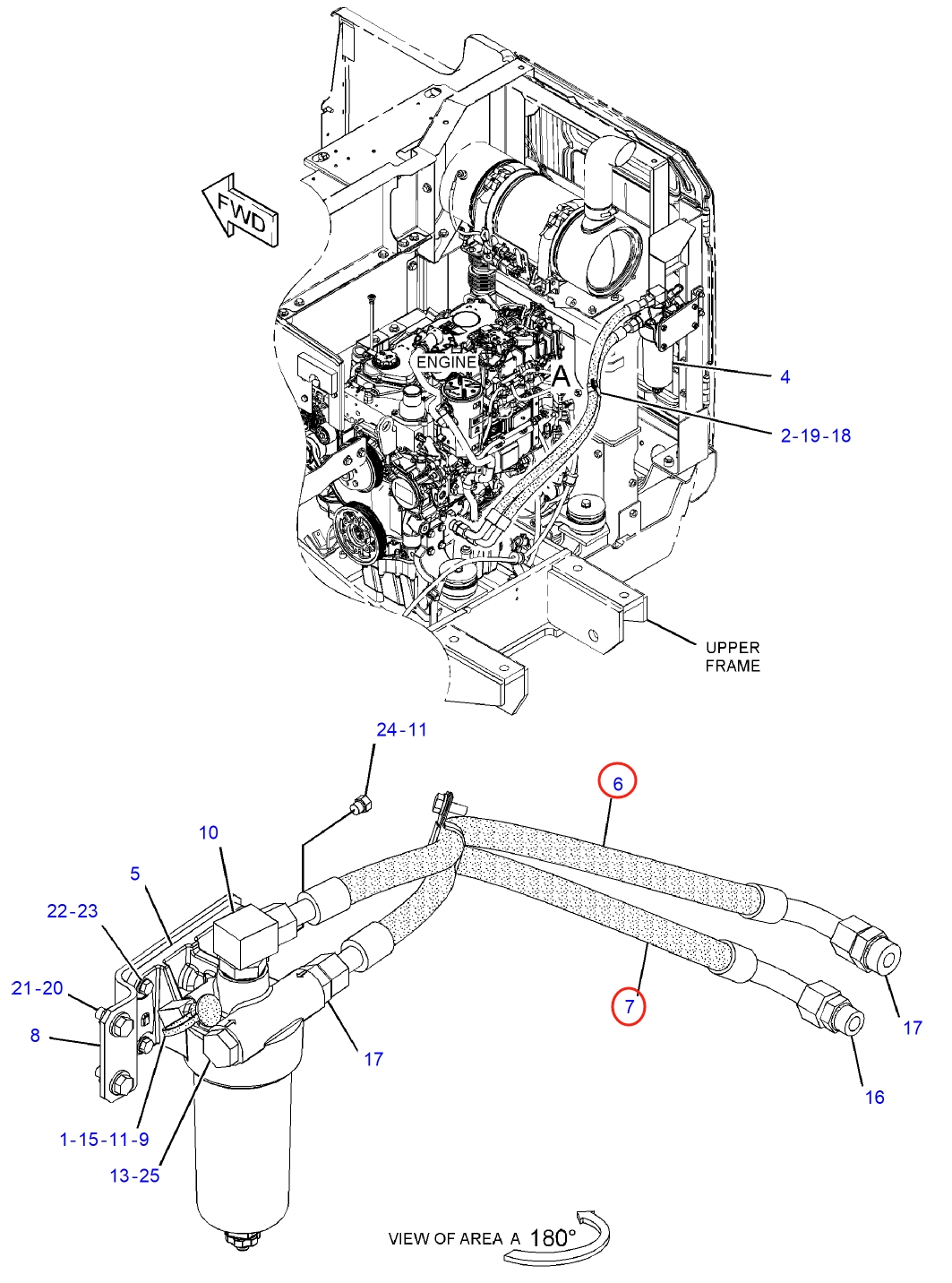

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 351-3993 before removing the hose.

Part number: 351-3993
Diagram pipe number: 6
Installation route: 机油管
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 1,024 mm
Working pressure: 8.7 MPa
Left fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 7

Installation route: 机油管

Length: 920 mm
Specification: DN19;2SN-12;13.8Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 5

Installation route: 油底壳排油管

Length: 764 mm
Specification: DN16;1SN-10;10.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 7

Installation route: 机油管

Length: 924 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
