- Length
- 750 mm
- Specification
- DN13;4SH-08;41.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Individual hose record
152581A1 Hose Repair Specifications
Excavator · Case · CX130B · Swivel Joint
Finished length1,900 mm
Locate this hose

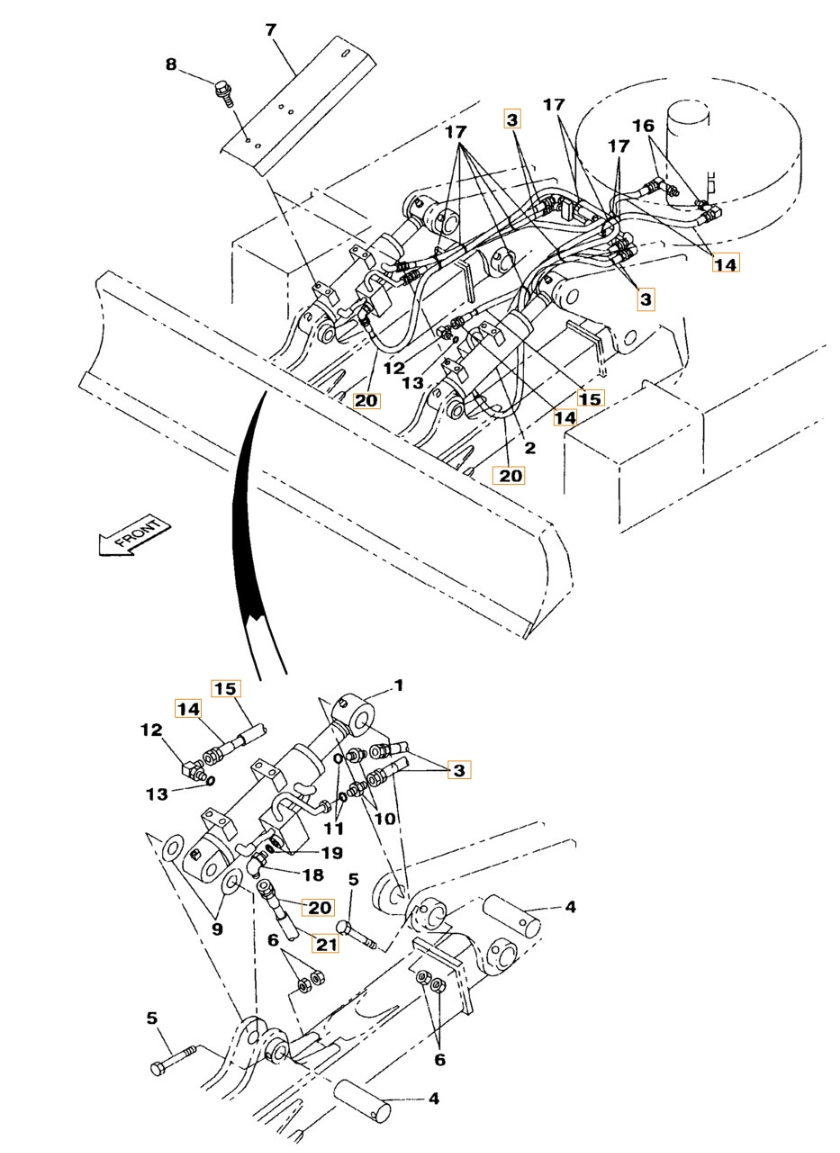

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 152581A1 before removing the hose.
Repair specifications
- Part number
- 152581A1
- Diagram pipe number
- 14
- Installation route
- 回转接头~推土铲油缸
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,900 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 2
Same system
Related Hoses
Diagram Pipe No. 8
150963A1
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 1,650 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Diagram Pipe No. 1
160696A1
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 1,680 mm
- Specification
- DN19;4SH-12;42.0MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
For reference only. Confirm the actual hose before fabrication.
