Individual hose record

559-3075 Hose Repair Specifications

Excavator · Caterpillar · CAT®317 · Grease Lines

Finished length1,700 mm

Locate this hose

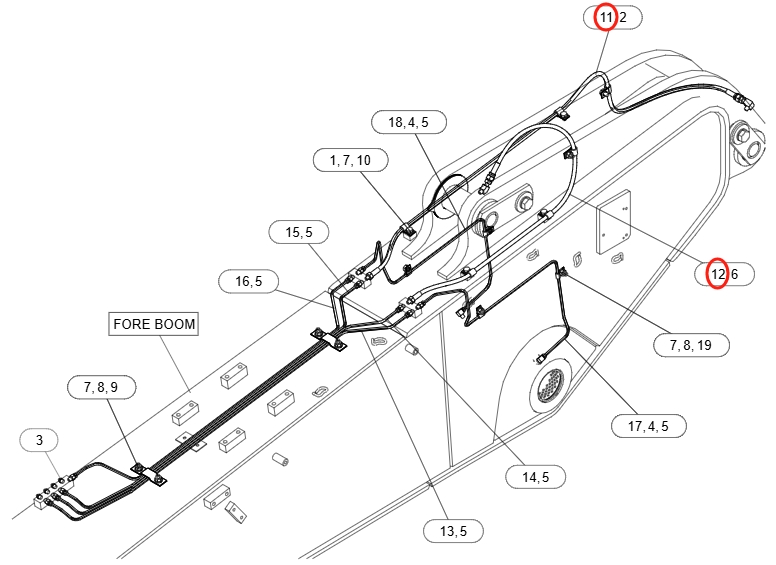

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 559-3075 before removing the hose.

Caterpillar CAT®317 installation diagram showing hydraulic hose 559-3075 at Pipe No. 11 — Caterpillar CAT®317Part 559-3075 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: 559-3075
Diagram pipe number: 11
Installation route: 小臂黄油管
Hose specification: DN6;-4;10.3Mpa
Finished length: 1,700 mm
Working pressure: 10.3 MPa
Left fitting: 美制锥形外螺纹
Right fitting: 美制锥形外螺纹30°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 10

570-5191

Installation route: 大臂摆动油缸黄油管

Length: 2,700 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹

View full repair specifications

Diagram Pipe No. 11

570-5192

Installation route: 大臂油缸黄油管

Length: 1,960 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制锥形外螺纹
Right fitting: 美制锥形外螺纹30°内锥

View full repair specifications

Diagram Pipe No. 9

570-5190

Installation route: 大臂油缸黄油管

Length: 2,080 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制锥形外螺纹
Right fitting: 美制锥形外螺纹30°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
