Individual hose record
4451723 Hose Repair Specifications
Excavator · Hitachi · ZX120 · Control Lever
Finished length1,550 mm
Locate this hose

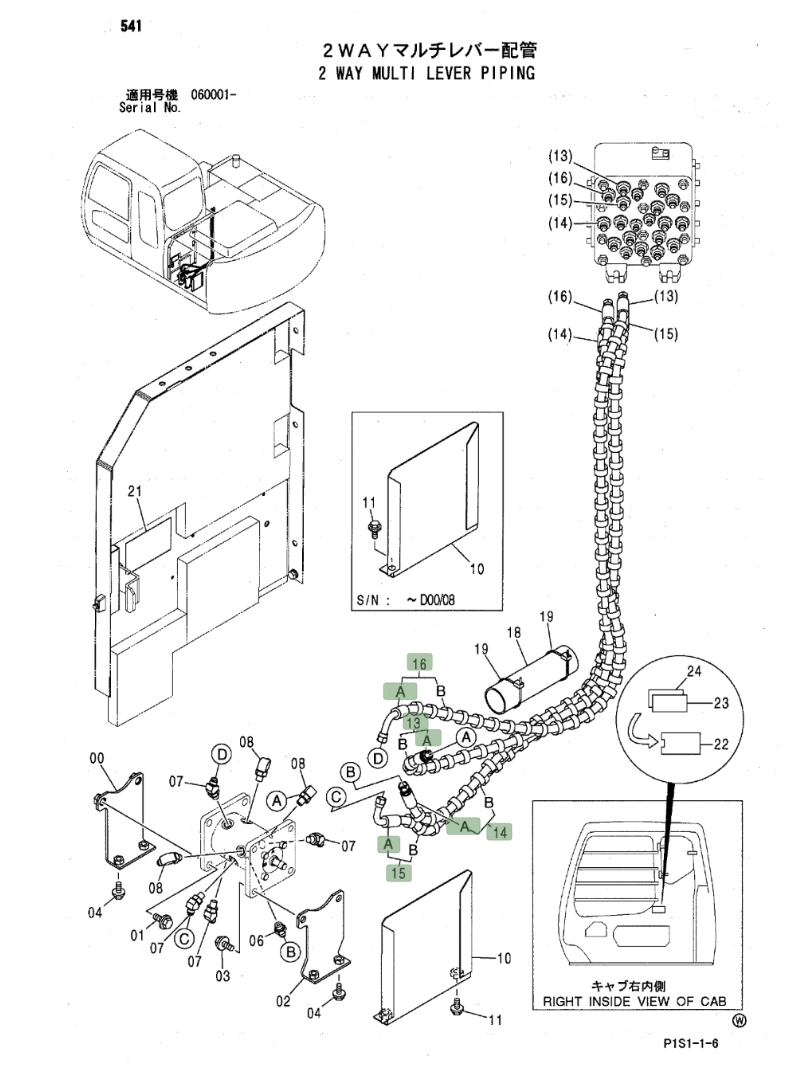

Installation diagram — Pipe No. 15A
Locate Pipe No. 15A in the diagram, then confirm part number 4451723 before removing the hose.
Repair specifications
- Part number
- 4451723
- Diagram pipe number
- 15A
- Installation route
- 模式转换阀~中转接头
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,550 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
