Individual hose record

4635305 Hose Repair Specifications

Excavator · Hitachi · ZX350LC-5G · Swivel Joint

Finished length2,400 mm

Locate this hose

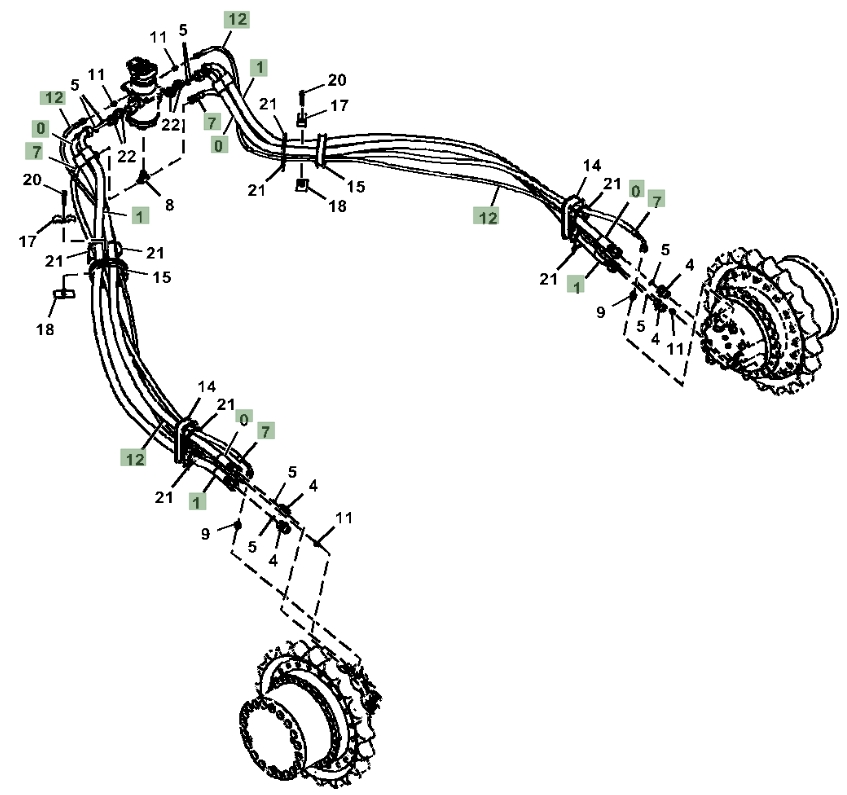

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 4635305 before removing the hose.

Hitachi ZX350LC-5G installation diagram showing hydraulic hose 4635305 at Pipe No. 1
Hitachi ZX350LC-5GPart 4635305 · Pipe No. 1Open full-size diagram

Repair specifications

Part number
4635305
Diagram pipe number
1
Installation route
Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification
DN25;4SH-16;34.5Mpa
Finished length
2,400 mm
Working pressure
34.5 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity
2
