Individual hose record

361-8969 Hose Repair Specifications

Excavator · Caterpillar · CAT®316E L · Attachments

Finished length2,030 mm

Locate this hose

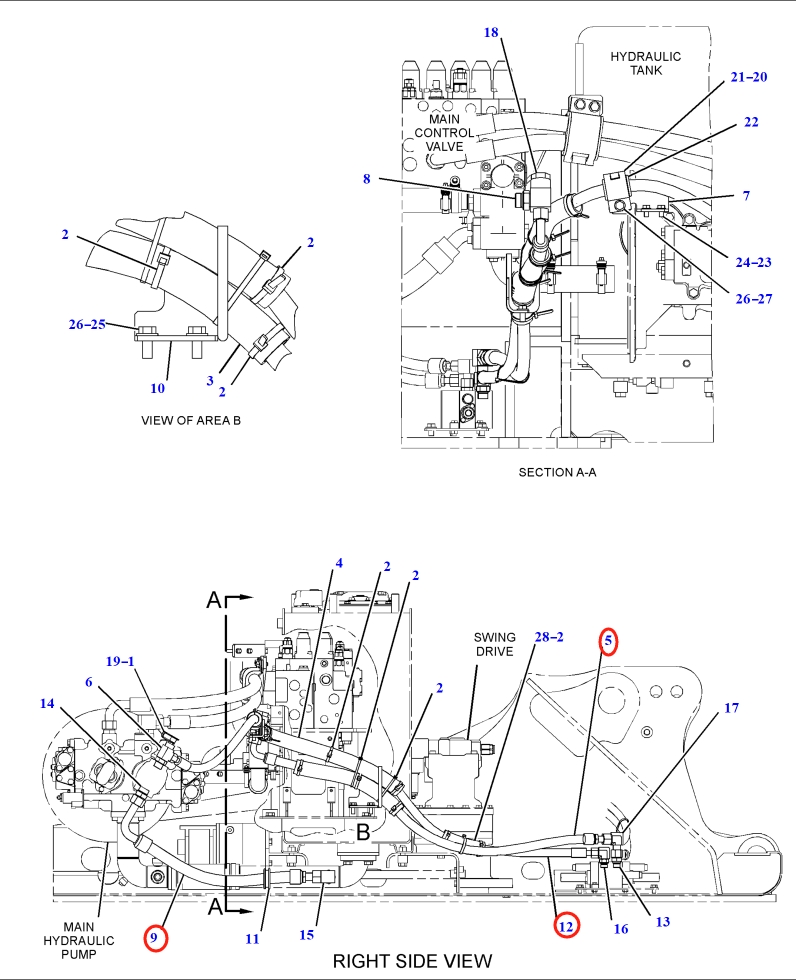

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 361-8969 before removing the hose.

Part number: 361-8969
Diagram pipe number: 12
Installation route: 液压泵~控制阀(回转接头前)
Hose specification: DN16;4SP-10;28Mpa
Finished length: 2,030 mm
Working pressure: 28 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 3

Installation route: 大臂(附加装置)~小臂(附加装置)

Length: 1,540 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 33

Installation route: 驾驶室先导管路

Length: 1,830 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 5

Installation route: 大臂(附加装置)~控制阀(分配阀前)

Length: 1,540 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 4

Installation route: 大臂(附加装置)~控制阀(分配阀前)

Length: 1,610 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 6

Installation route: 选择阀(驾驶室)~中转接头

Length: 630 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
