Individual hose record

9224866 Hose Repair Specifications

Excavator · Hitachi · ZX200LC · Attachments – Quick Coupler

Finished length850 mm

Locate this hose

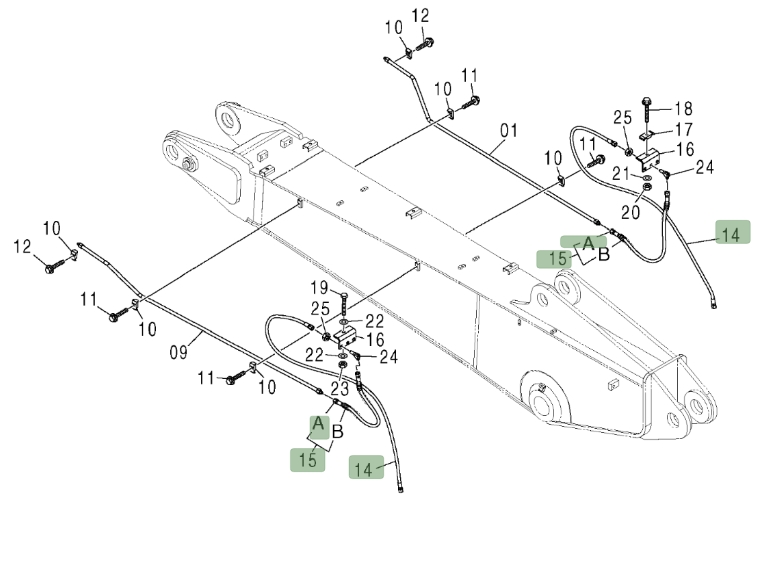

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 9224866 before removing the hose.

Hitachi ZX200LC installation diagram showing hydraulic hose 9224866 at Pipe No. 15 — Hitachi ZX200LCPart 9224866 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: 9224866
Diagram pipe number: 15
Installation route: 小臂(快换)~接线板(快换)
Hose specification: DN10;2SN-6;34.5MPa
Finished length: 850 mm
Working pressure: 34.5 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 47

4371270

Installation route: 中转接头~过渡阀块(隔板)

Length: 900 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 41

4452733

Installation route: 中转接头~过渡阀块(快换)

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 14

4601514

Installation route: 大臂(快换)~接线板(快换)

Length: 1,900 mm
Specification: DN10;2SN-06;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 15A

4361511

Installation route: 小臂(快换)~接线板(快换)

Length: 850 mm
Specification: DN10;2SN-6;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 38A

4437638

Installation route: 快换踏板~过渡阀块(快换)

Length: 2,950 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 54

4371270

Installation route: 流速切换阀~过渡阀块(隔板)

Length: 900 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 43

4437292

Installation route: 流速切换阀~过渡阀块(隔板)

Length: 730 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
