Individual hose record
218-1058 Hose Repair Specifications
Excavator · Caterpillar · CAT®313F L · Hydraulic Pump
Finished length450 mm
Locate this hose

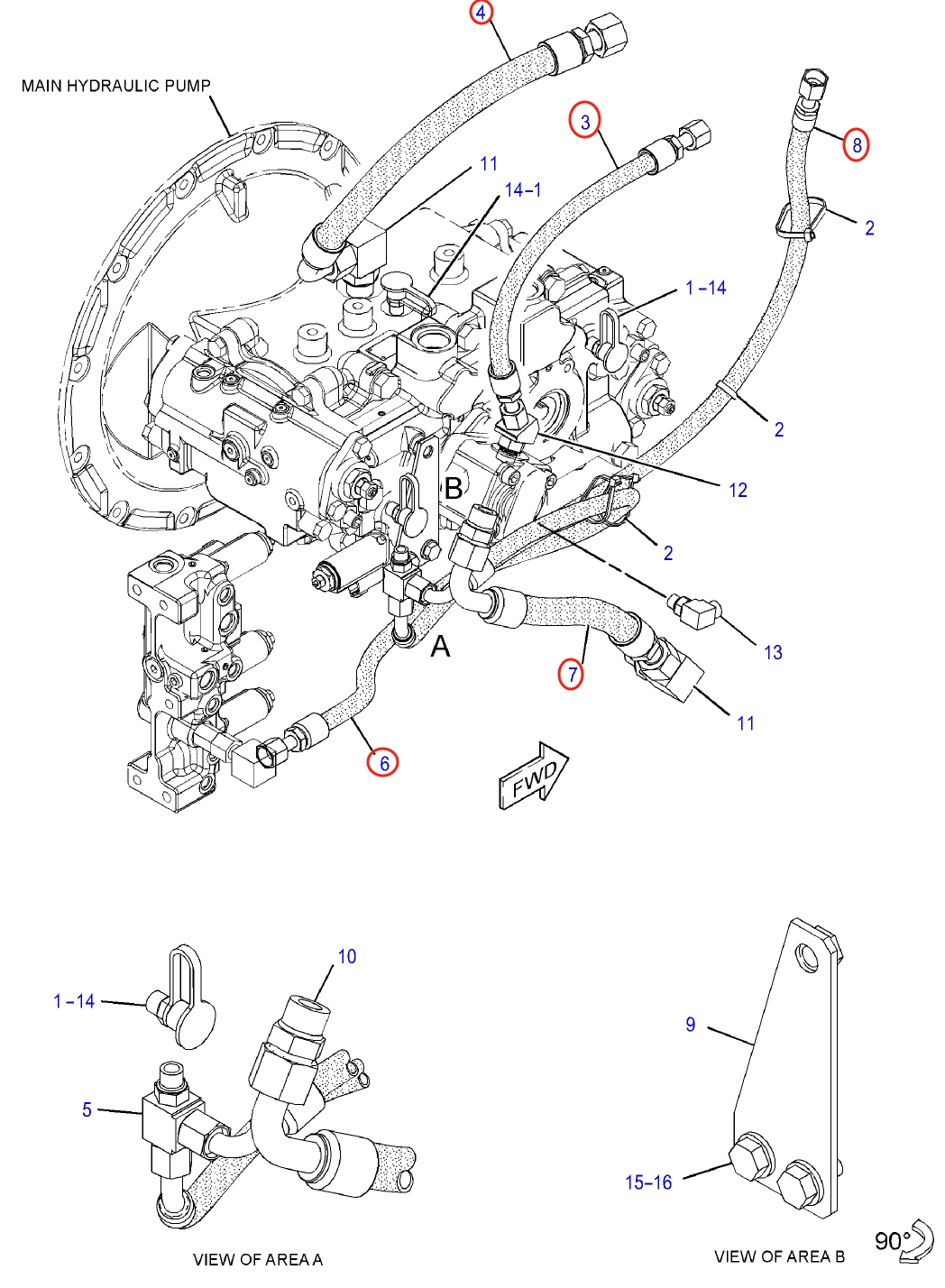

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 218-1058 before removing the hose.
Repair specifications
- Part number
- 218-1058
- Diagram pipe number
- 3
- Installation route
- 先导泵~液压油过滤器
- Hose specification
- DN13;1SN-8;10.4Mpa
- Finished length
- 450 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
