5C-6616 Hose Repair Specifications

Excavator · Caterpillar · CAT®215 · Hydraulic Pump

Finished length2,100 mm

Locate this hose

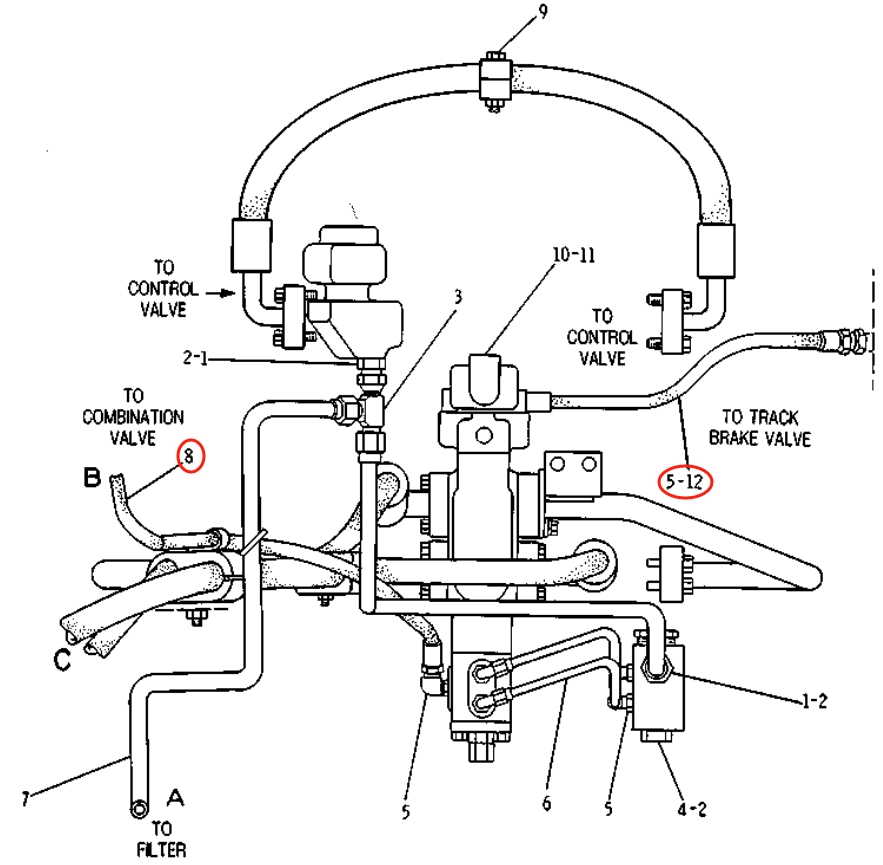

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 5C-6616 before removing the hose.

Caterpillar CAT®215 installation diagram showing hydraulic hose 5C-6616 at Pipe No. 8 — Caterpillar CAT®215Part 5C-6616 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 5C-6616
Diagram pipe number: 8
Installation route: 液压泵~组合阀
Hose specification: DN6;-4;19.2Mpa
Finished length: 2,100 mm
Working pressure: 19.2 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 27

5C-4367

Installation route: 前液压泵~后液压泵

Length: 360 mm
Specification: DN6;-4;19.2Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 16

9D-5379

Installation route: 中心泵~先导滤芯

Length: 673 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 21

5C-4176

Installation route: 液压泵~液压油过滤器

Length: 840 mm
Specification: DN16;1SN-10;10.5Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
