Individual hose record

5W-7912 Hose Repair Specifications

Excavator · Caterpillar · CAT®212 · Control Valve

Finished length1,060 mm

Locate this hose

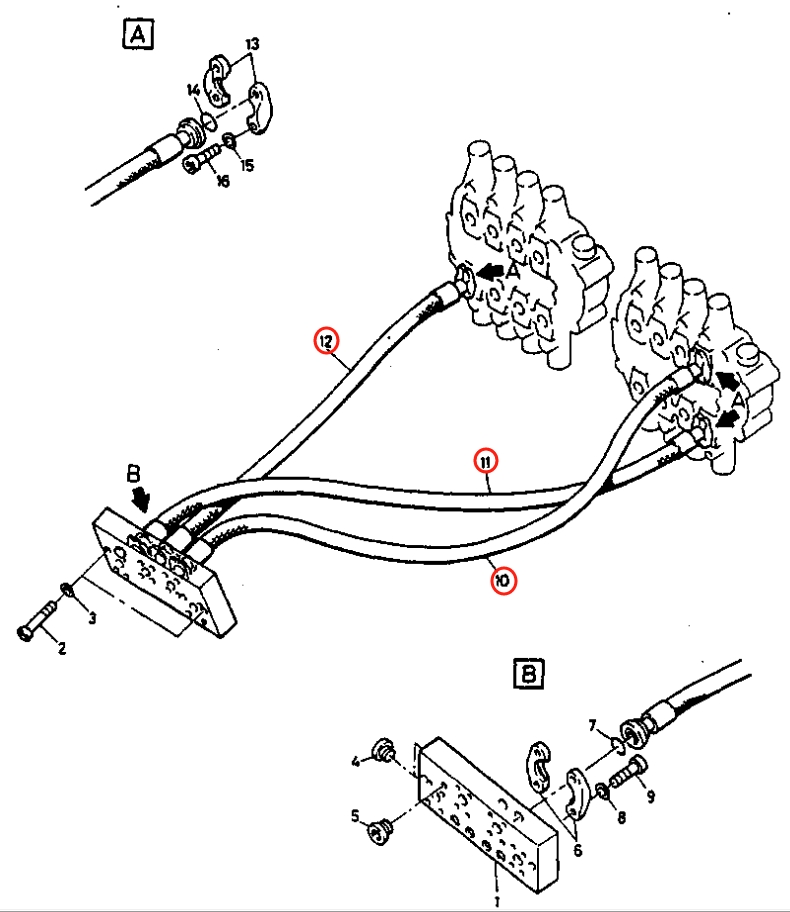

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 5W-7912 before removing the hose.

Caterpillar CAT®212 installation diagram showing hydraulic hose 5W-7912 at Pipe No. 12 — Caterpillar CAT®212Part 5W-7912 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 5W-7912
Diagram pipe number: 12
Installation route: 右分配阀~过渡阀块(回转接头前)
Hose specification: DN16;6SH-10;42Mpa
Finished length: 1,060 mm
Working pressure: 42 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 15

5W-7856

Installation route: 左分配阀~右分配阀

Length: 607 mm
Specification: DN13;2SN-8;27.5Mpa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
