Individual hose record
4628529 Hose Repair Specifications
Excavator · Hitachi · ZX240LC-3 · Boom Assembly
Finished length980 mm
Locate this hose

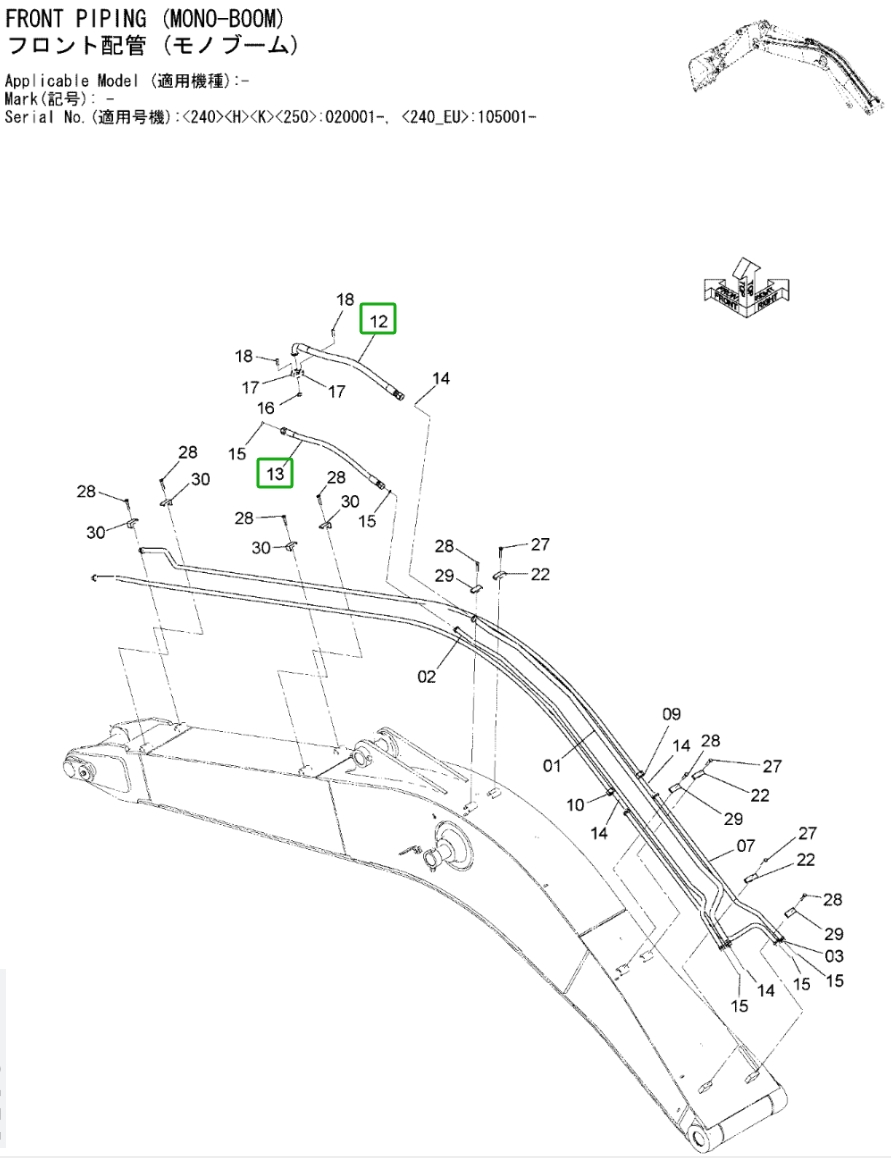

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 4628529 before removing the hose.
Repair specifications
- Part number
- 4628529
- Diagram pipe number
- 12
- Installation route
- Arm cylinder — rightOriginal Chinese: 小臂油缸右
- Hose specification
- DN25;4SH-16;38.8MPa
- Finished length
- 980 mm
- Working pressure
- 38.8 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
- Quantity
- 1
