Individual hose record

030-8769 Hose Repair Specifications

Excavator · Caterpillar · CAT®245B · Hydraulic Tank

Finished length813 mm

Locate this hose

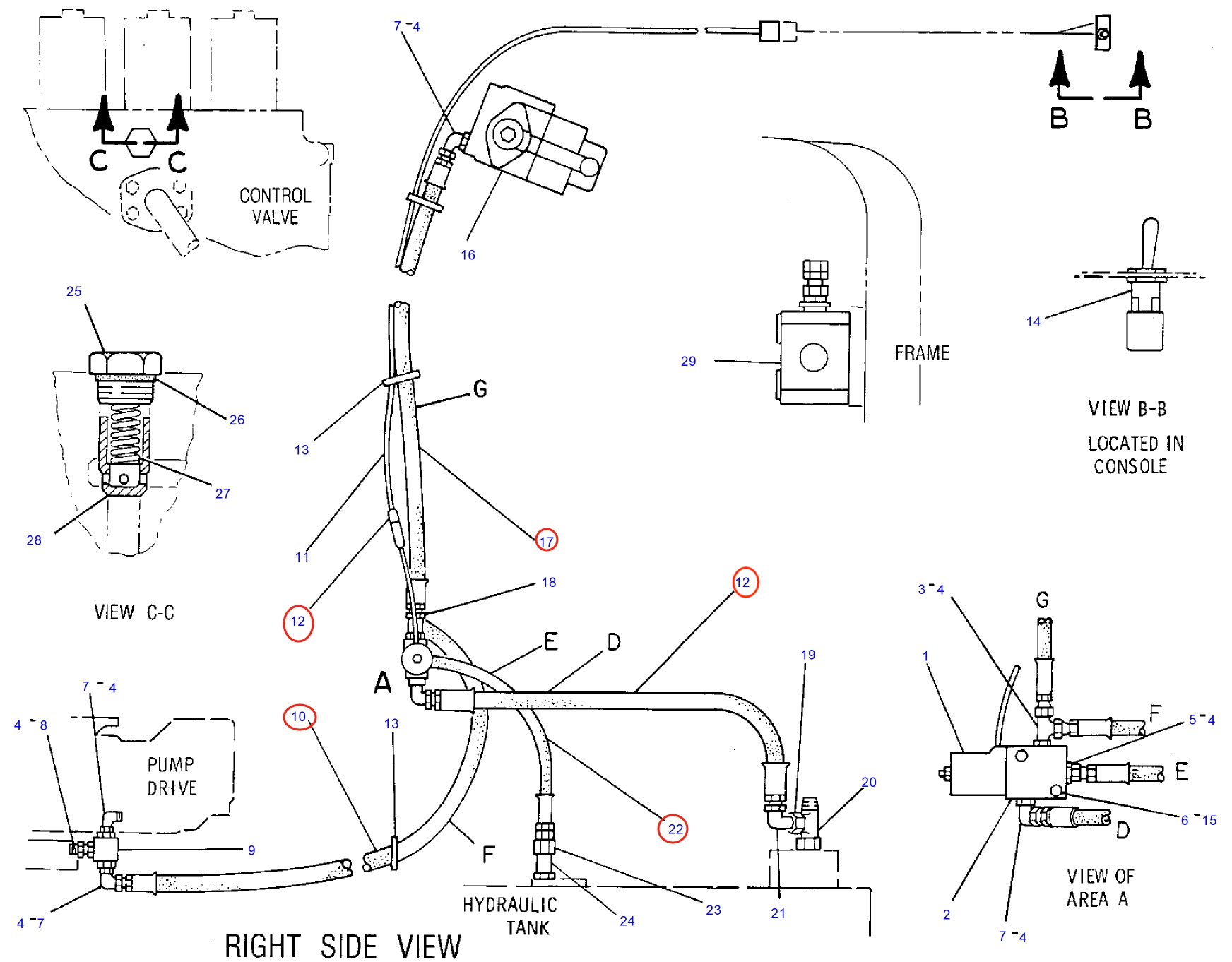

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 030-8769 before removing the hose.

Caterpillar CAT®245B installation diagram showing hydraulic hose 030-8769 at Pipe No. 12 — Caterpillar CAT®245BPart 030-8769 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 030-8769
Diagram pipe number: 12
Installation route: 液压油箱~电磁阀(液压泵左前)
Hose specification: DN10;2SN-6;33Mpa
Finished length: 813 mm
Working pressure: 33 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
