Individual hose record

319-9955 Hose Repair Specifications

Excavator · Caterpillar · CAT®314D LCR · Attachments – Quick Coupler

Finished length2,560 mm

Locate this hose

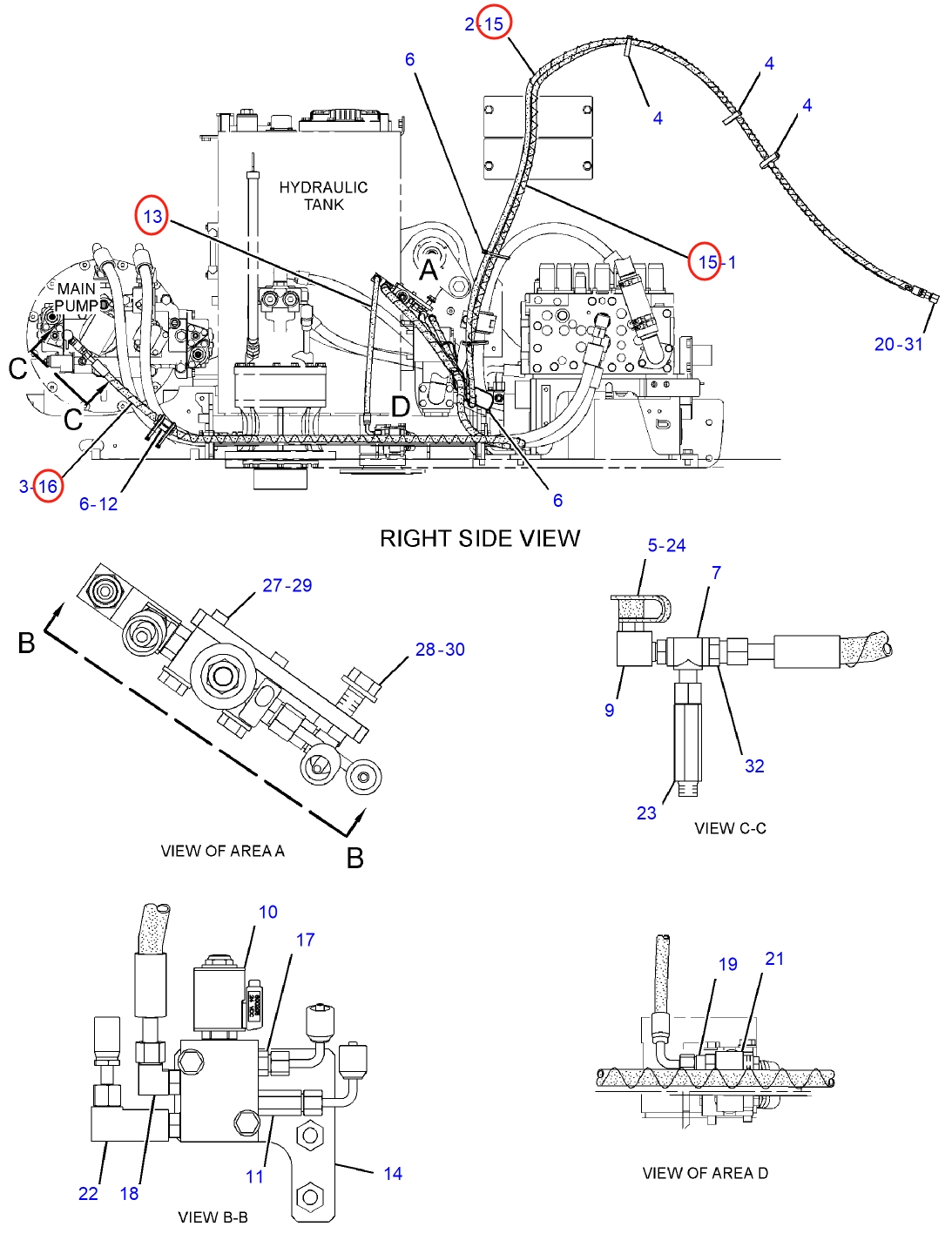

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 319-9955 before removing the hose.

Part number: 319-9955
Diagram pipe number: 16
Installation route: 快速联轴阀~液压泵
Hose specification: DN10;6SH-6;42Mpa
Finished length: 2,560 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 8

Installation route: 大臂快换管

Length: 3,750 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: 大臂(快换)~小臂(快换)

Length: 1,350 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
