Individual hose record

370-0298 Hose Repair Specifications

Excavator · Caterpillar · CAT®316F · Attachments

Finished length2,470 mm

Locate this hose

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 370-0298 before removing the hose.

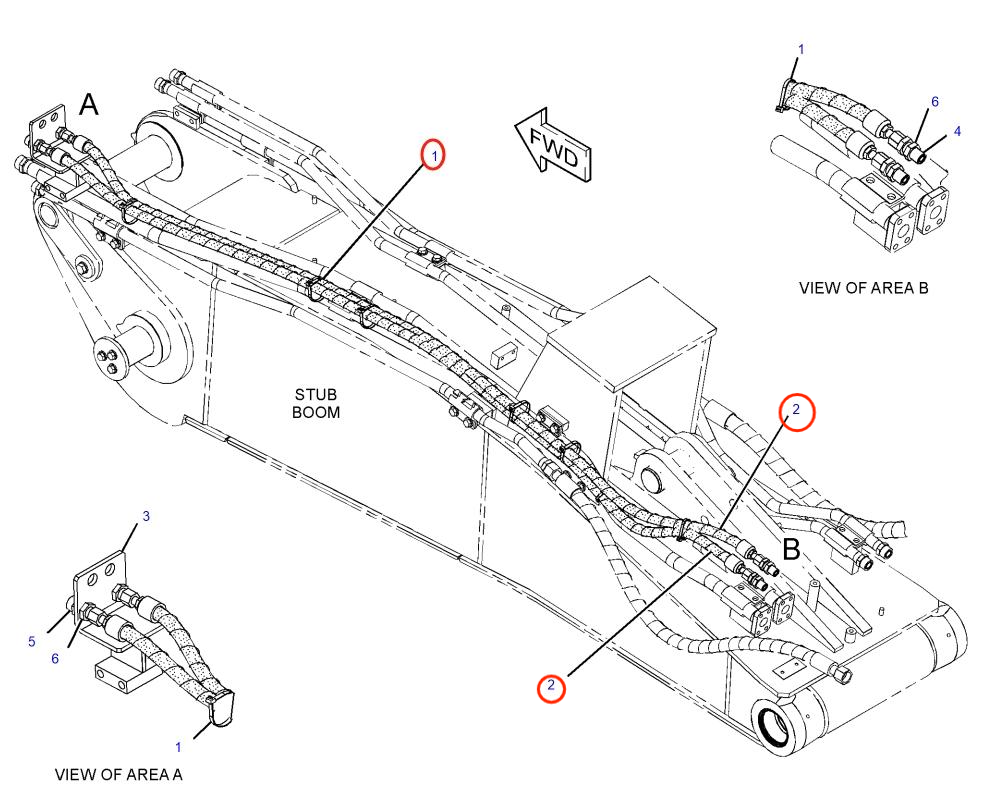

Caterpillar CAT®316F installation diagram showing hydraulic hose 370-0298 at Pipe No. 2 — **Caterpillar CAT®316F**Part 370-0298 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 370-0298
Diagram pipe number: 2
Installation route: 大臂后段附加装置管
Hose specification: DN13;4SP-8;28Mpa
Finished length: 2,470 mm
Working pressure: 28 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 1

4I-6003

Installation route: 踏板(附加装置)~分配阀上

Length: 2,650 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

282-5884

Installation route: 大臂(附加装置)~小臂(附加装置)

Length: 1,400 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

370-8863

Installation route: 大臂前段(附加装置)~大臂后段(附加装置)

Length: 1,260 mm
Specification: DN16;4SP-10;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

223-6869

Installation route: 大臂(附加装置)~分配阀左

Length: 1,100 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

361-8963

Installation route: 大臂(附加装置)~控制阀(回转接头右)

Length: 1,610 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

108-7562

Installation route: 大臂前段(附加装置)~大臂后段(附加装置)

Length: 1,100 mm
Specification: DN16;4SP-10;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

337-2696

Installation route: 大臂(附加装置)~控制阀(回转接头右)

Length: 1,480 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

197-2299

Installation route: 大臂(附加装置)~过渡阀块(附加装置)

Length: 1,220 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
