Individual hose record

7V-4304 Hose Repair Specifications

Excavator · Caterpillar · CAT®235D · Hydraulic Pump

Finished length833 mm

Locate this hose

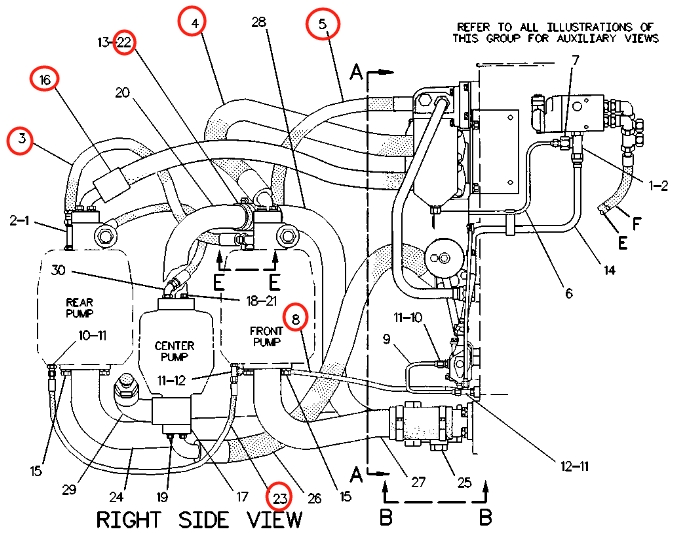

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 7V-4304 before removing the hose.

Caterpillar CAT®235D installation diagram showing hydraulic hose 7V-4304 at Pipe No. 3 — Caterpillar CAT®235DPart 7V-4304 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: 7V-4304
Diagram pipe number: 3
Installation route: 液压泵左~液压泵右
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 833 mm
Working pressure: 8.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 5

1V-1775

Installation route: 液压泵~液压油过滤器

Length: 851 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 23

2V-8679

Installation route: 液压泵左~液压泵右

Length: 794 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
