Individual hose record

2184-1196D141 Hose Preview

Excavator · Doosan · DX140LCR · Boom Assembly

Finished length590 mm

Repair specifications

Part number
2184-1196D141
Diagram pipe number
6
Installation route
Boom cylinder — left 2 / left 3Original Chinese: 大臂油缸左2/左3
Hose specification
DN13;4SP-08;41.5MPa
Finished length
590 mm
Working pressure
41.5 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
2

Manual diagrams

Installation and Exploded Views

A red marker identifies a reviewed hose location.

Installation diagram

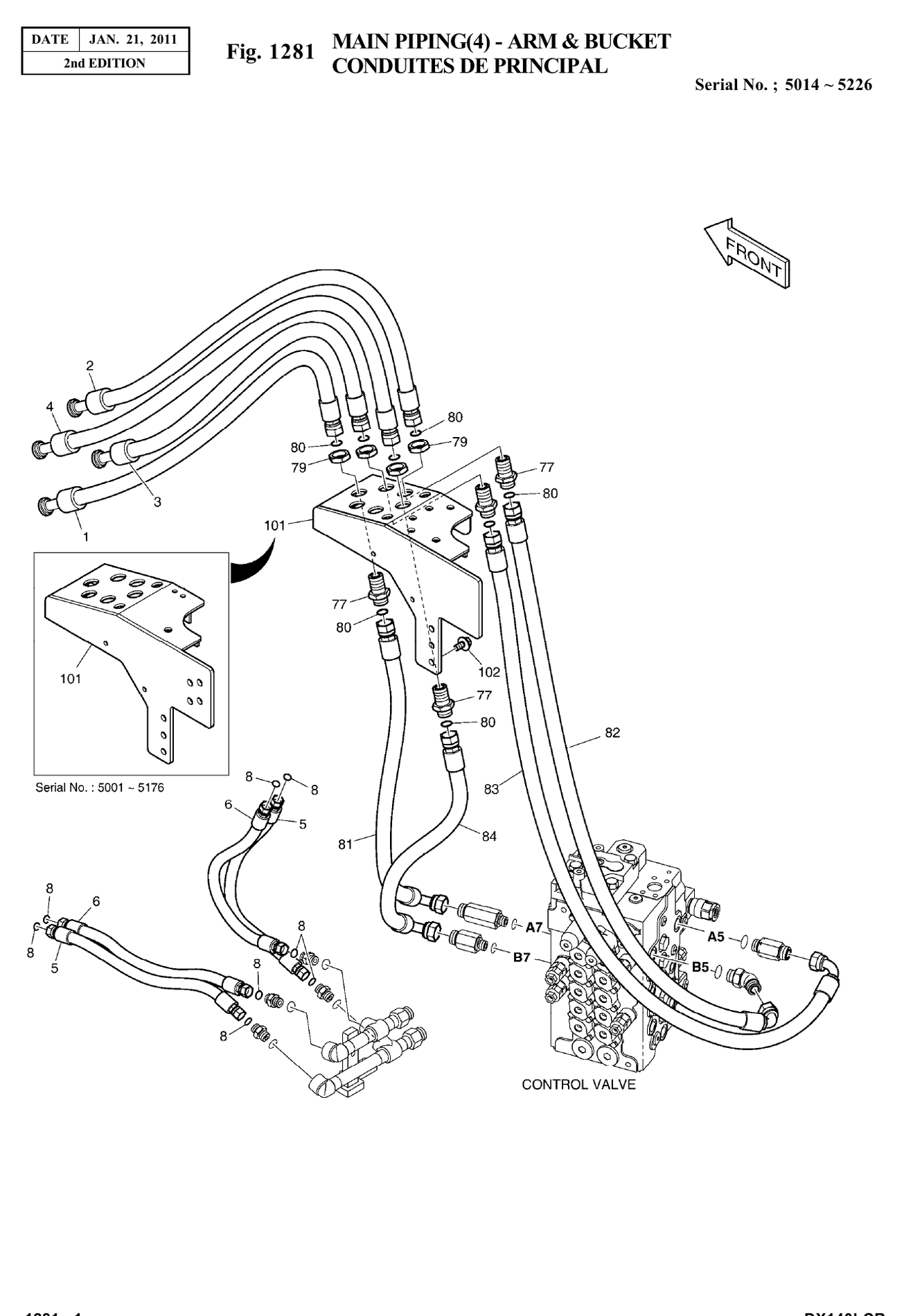

Installation diagramUse this diagram to help identify the hose. Confirm the exact position and pipe number on the machine.Doosan DX140LCR Excavator Parts ManualManual page 154 · Printed page 1281-1 · Fig. 1281View full-size
Installation diagram

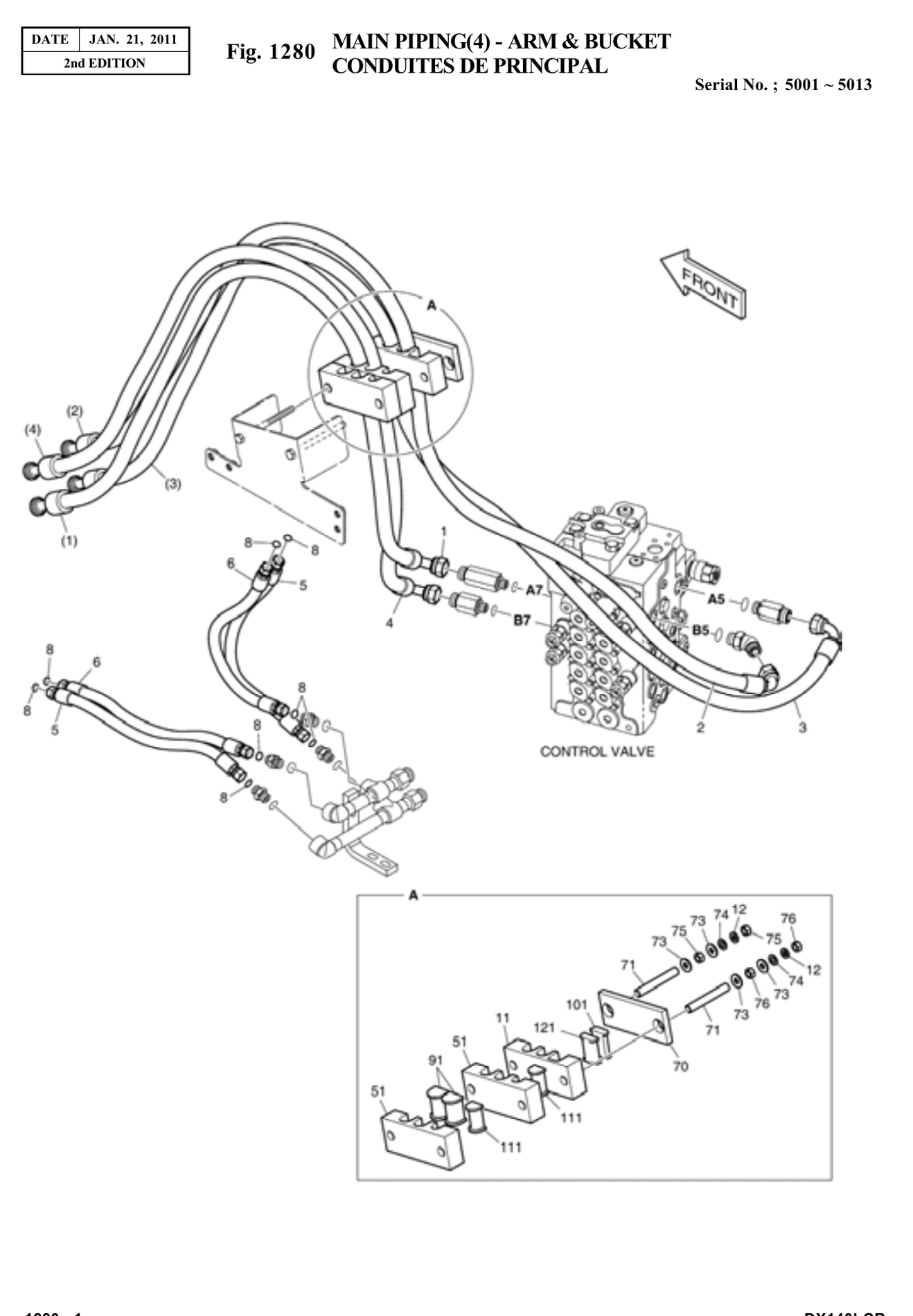

Installation diagramUse this diagram to help identify the hose. Confirm the exact position and pipe number on the machine.Doosan DX140LCR Excavator Parts ManualManual page 152 · Printed page 1280-1 · Fig. 1280View full-size

For reference only. Confirm the actual hose before fabrication.
