Individual hose record
4I-1077 Hose Repair Specifications
Excavator · Caterpillar · CAT®317 N · Hydraulic Pump
Finished length1,150 mm
Locate this hose

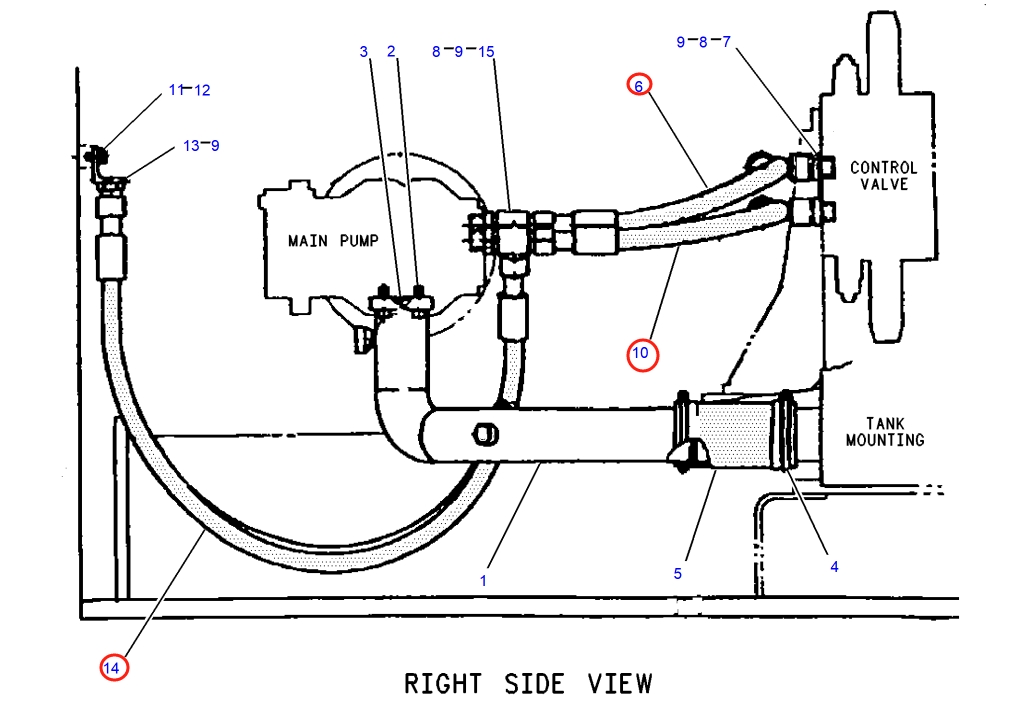

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 4I-1077 before removing the hose.
Repair specifications
- Part number
- 4I-1077
- Diagram pipe number
- 14
- Installation route
- 液压泵~堵头(减震管)
- Hose specification
- DN19;4SP-12;35Mpa
- Finished length
- 1,150 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
