Individual hose record
8U-2130 Hose Repair Specifications
Excavator · Caterpillar · CAT®213B · Attachments – Breaker
Finished length2,350 mm
Locate this hose

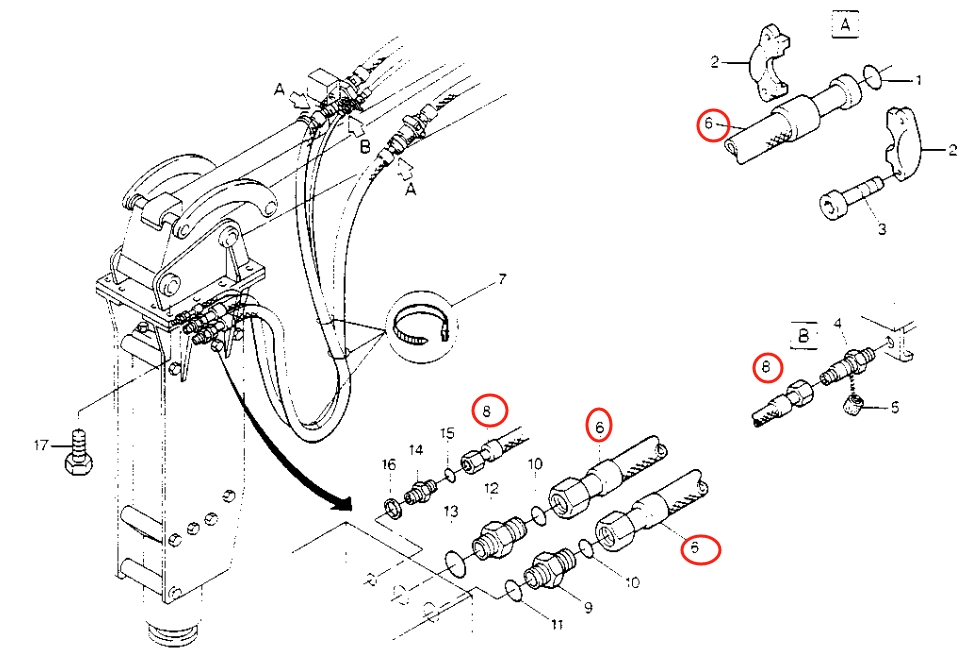

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 8U-2130 before removing the hose.
Repair specifications
- Part number
- 8U-2130
- Diagram pipe number
- 6
- Installation route
- 大臂(破碎器)~破碎器
- Hose specification
- DN25;4SP-16;28Mpa
- Finished length
- 2,350 mm
- Working pressure
- 28 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 2
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
