347-6060 Hose Repair Specifications

Excavator · Caterpillar · CAT®315 GC · Control Valve

Finished length590 mm

Locate this hose

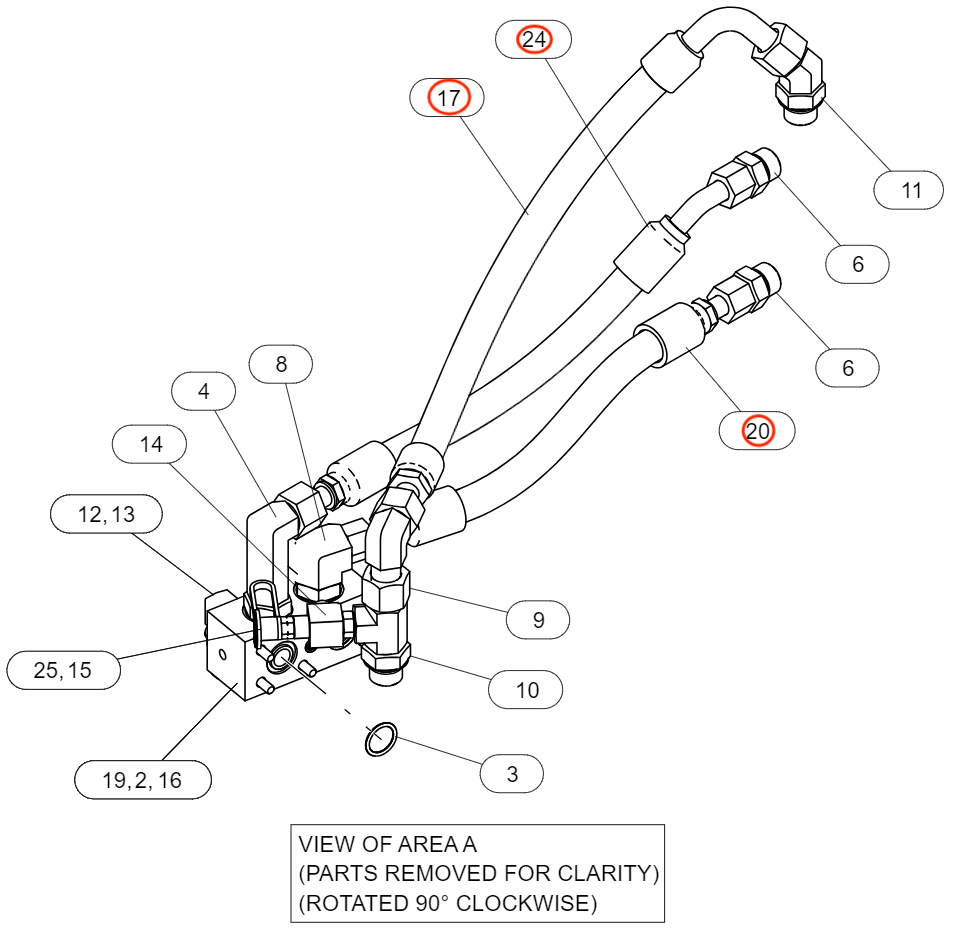

Installation diagram — Pipe No. 17

Locate Pipe No. 17 in the diagram, then confirm part number 347-6060 before removing the hose.

Part number: 347-6060
Diagram pipe number: 17
Installation route: 分配阀上~回转马达
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 590 mm
Working pressure: 8.7 MPa
Left fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 29

Installation route: 分配阀左~过渡阀块(液压泵左)

Length: 290 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 21

Installation route: 分配阀前~回转马达

Length: 410 mm
Specification: DN16;4SP-10;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
