- Length
- 1,350 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Individual hose record
DS2093003 Hose Repair Specifications
Excavator · Doosan · DX140W · Swivel Joint
Finished length1,350 mm
Locate this hose

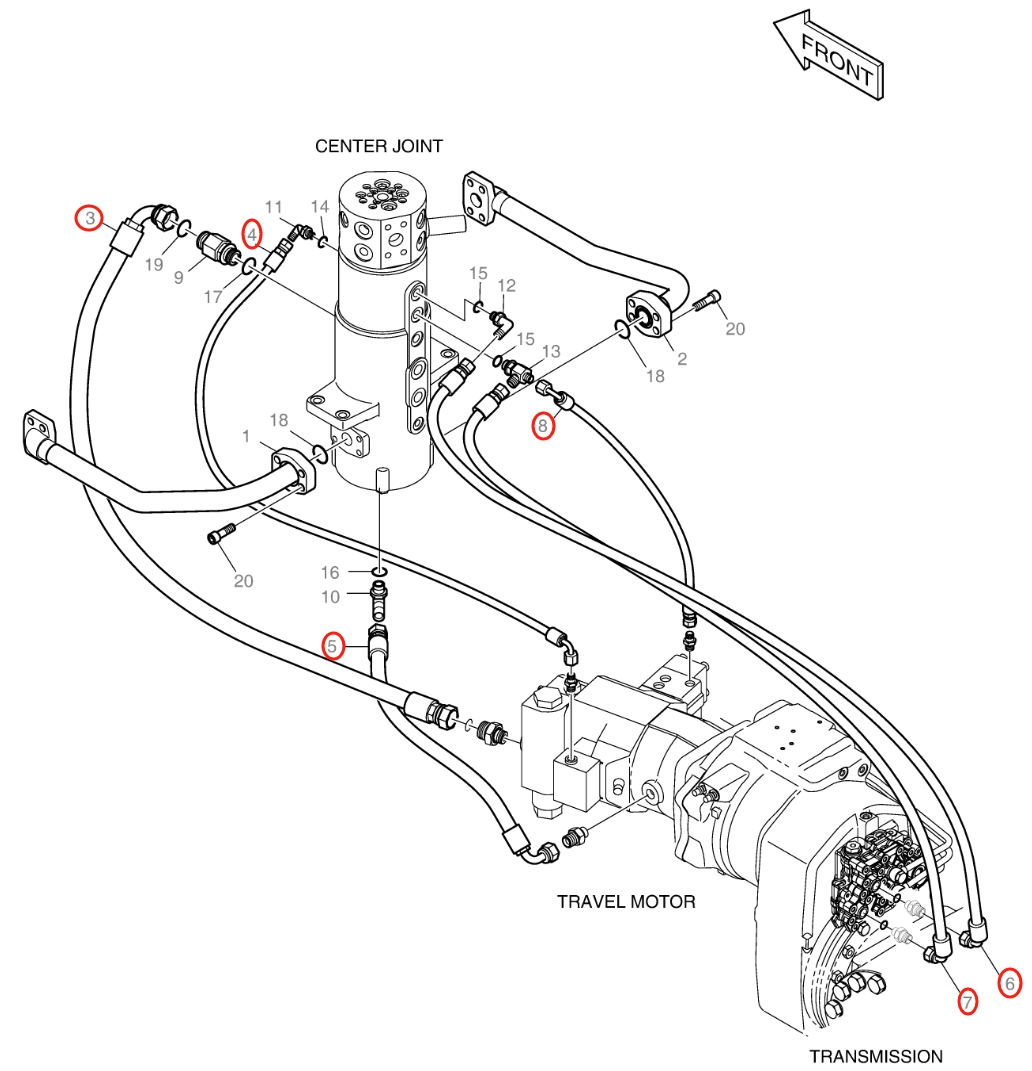

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number DS2093003 before removing the hose.
Repair specifications
- Part number
- DS2093003
- Diagram pipe number
- 6
- Installation route
- 回转接头5口~变速箱K口
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,350 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
