Individual hose record
272-4142 Hose Repair Specifications
Excavator · Caterpillar · CAT®317 · Hydraulic Pump
Finished length980 mm
Locate this hose

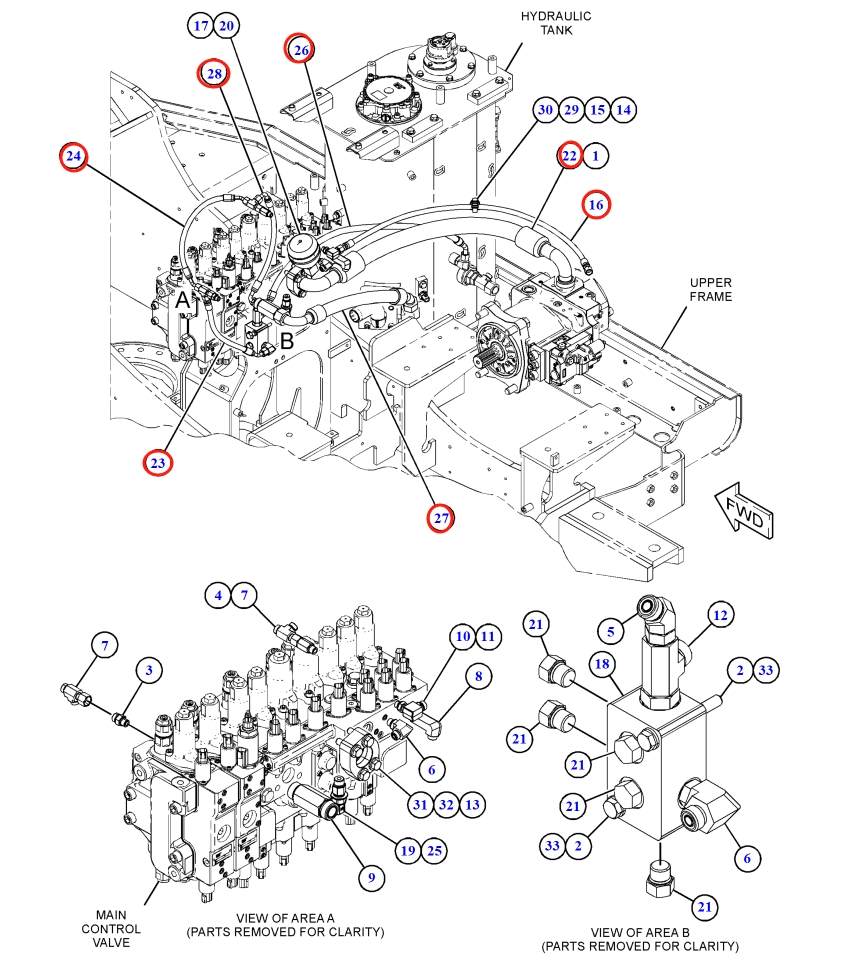

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 272-4142 before removing the hose.
Repair specifications
- Part number
- 272-4142
- Diagram pipe number
- 16
- Installation route
- 液压泵~液压蓄能器
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 980 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
