7V-0916 Hose Repair Specifications

Excavator · Caterpillar · CAT®229 · Fuel Lines

Finished length400 mm

Locate this hose

Installation diagram — Pipe No. 25

Locate Pipe No. 25 in the diagram, then confirm part number 7V-0916 before removing the hose.

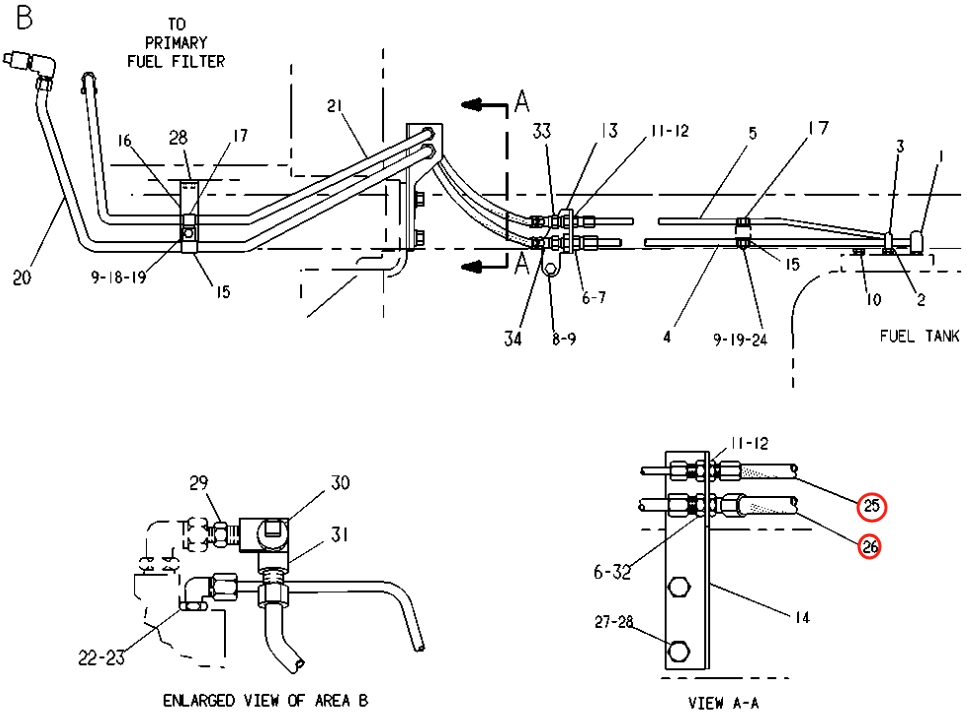

Caterpillar CAT®229 installation diagram showing hydraulic hose 7V-0916 at Pipe No. 25 — Caterpillar CAT®229Part 7V-0916 · Pipe No. 25Open full-size diagram

Repair specifications

Part number: 7V-0916
Diagram pipe number: 25
Installation route: 燃油箱~燃油过滤器
Hose specification: DN6;1SN-4;19.2Mpa
Finished length: 400 mm
Working pressure: 19.2 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 26

5C-6136

Installation route: 燃油箱~燃油过滤器

Length: 420 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
