Individual hose record
319-9981 Hose Repair Specifications
Excavator · Caterpillar · CAT®314D LCR · Pedal
Finished length480 mm
Locate this hose

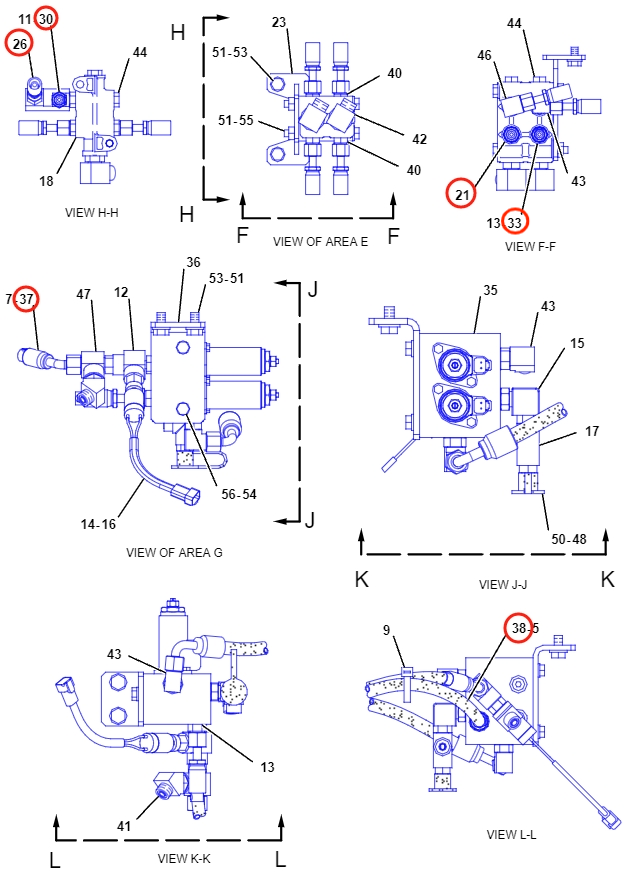

Installation diagram — Pipe No. 38
Locate Pipe No. 38 in the diagram, then confirm part number 319-9981 before removing the hose.
Repair specifications
- Part number
- 319-9981
- Diagram pipe number
- 38
- Installation route
- 行走踏板~电磁阀(驾驶室)
- Hose specification
- DN10;-6;10.3Mpa
- Finished length
- 480 mm
- Working pressure
- 10.3 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
