202-3769 Hose Repair Specifications

Excavator · Caterpillar · CAT®315C · Attachments – Lock Valve

Finished length2,800 mm

Locate this hose

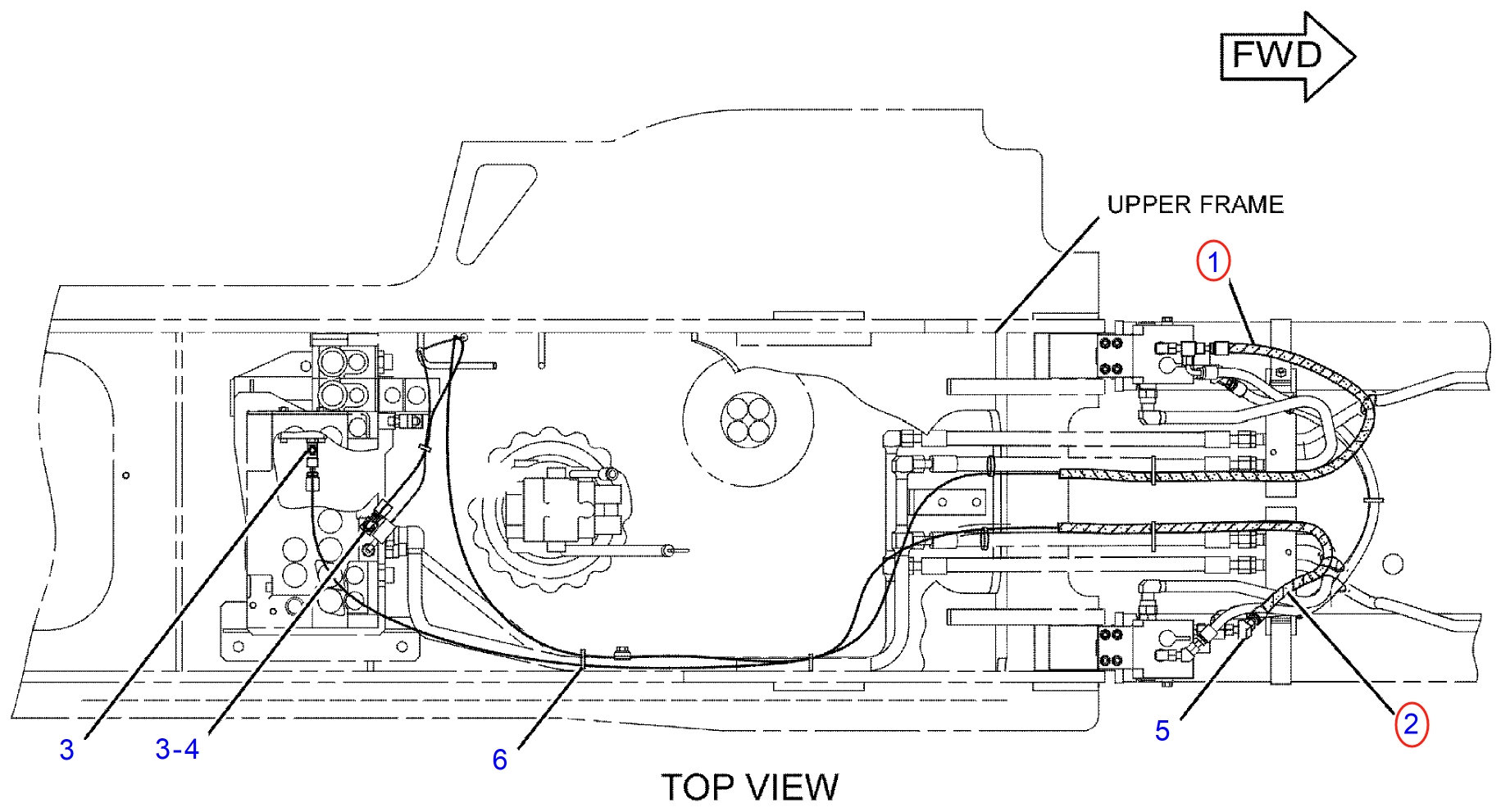

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 202-3769 before removing the hose.

Part number: 202-3769
Diagram pipe number: 1
Installation route: 大臂油缸锁止阀
Hose specification: DN10;1SN-6;15.7Mpa
Finished length: 2,800 mm
Working pressure: 15.7 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 1

Installation route: 小臂油缸锁止阀

Length: 3,550 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 27

Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀

Length: 1,200 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
