8U-5383 Hose Repair Specifications

Excavator · Caterpillar · CAT®206B · Attachments – Lock Valve

Finished length985 mm

Locate this hose

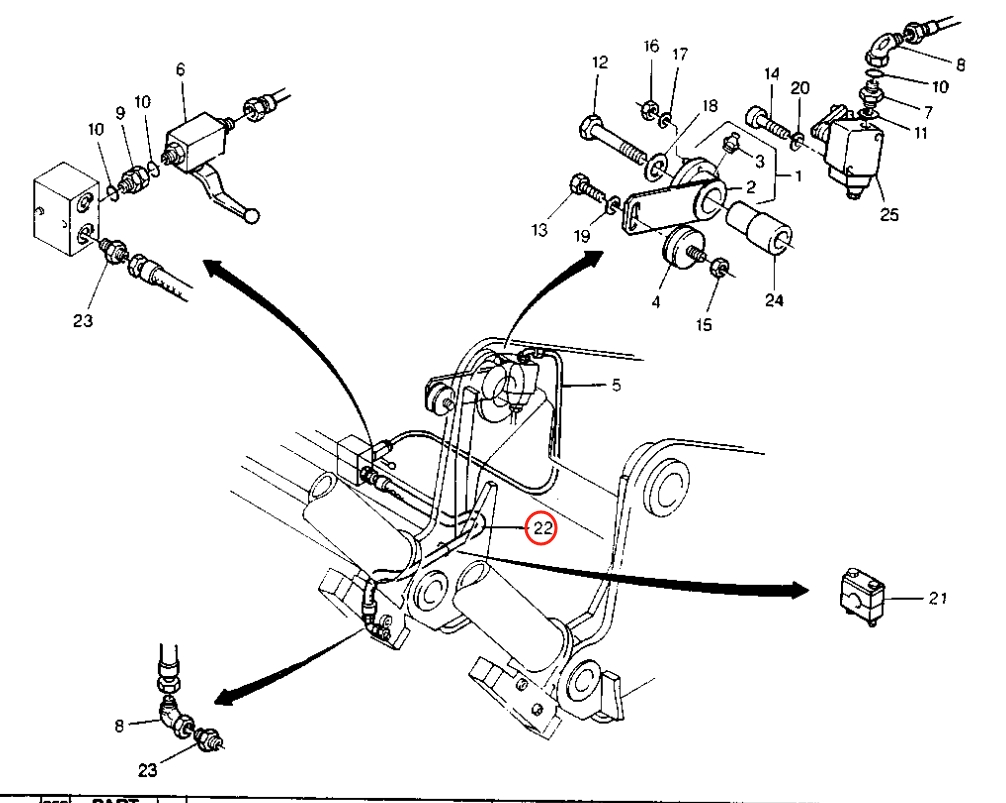

Installation diagram — Pipe No. 22

Locate Pipe No. 22 in the diagram, then confirm part number 8U-5383 before removing the hose.

Part number: 8U-5383
Diagram pipe number: 22
Installation route: 大臂油缸锁止阀~阀块
Hose specification: DN6;2SN-4;40Mpa
Finished length: 985 mm
Working pressure: 40 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 5

Installation route: 大臂油缸锁止阀接头总成~液压油箱

Length: 1,652 mm
Specification: DN19;2SN-12;21.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: 小臂油缸锁止阀~小臂油缸前置阀块

Length: 4,252 mm
Specification: DN16;2SN-10;25Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 23

Installation route: 大臂油缸锁止阀

Length: 985 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀

Length: 457 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
