Individual hose record

146-1292 Hose Repair Specifications

Excavator · Caterpillar · CAT®312B · Attachments – Quick Coupler

Finished length4,000 mm

Locate this hose

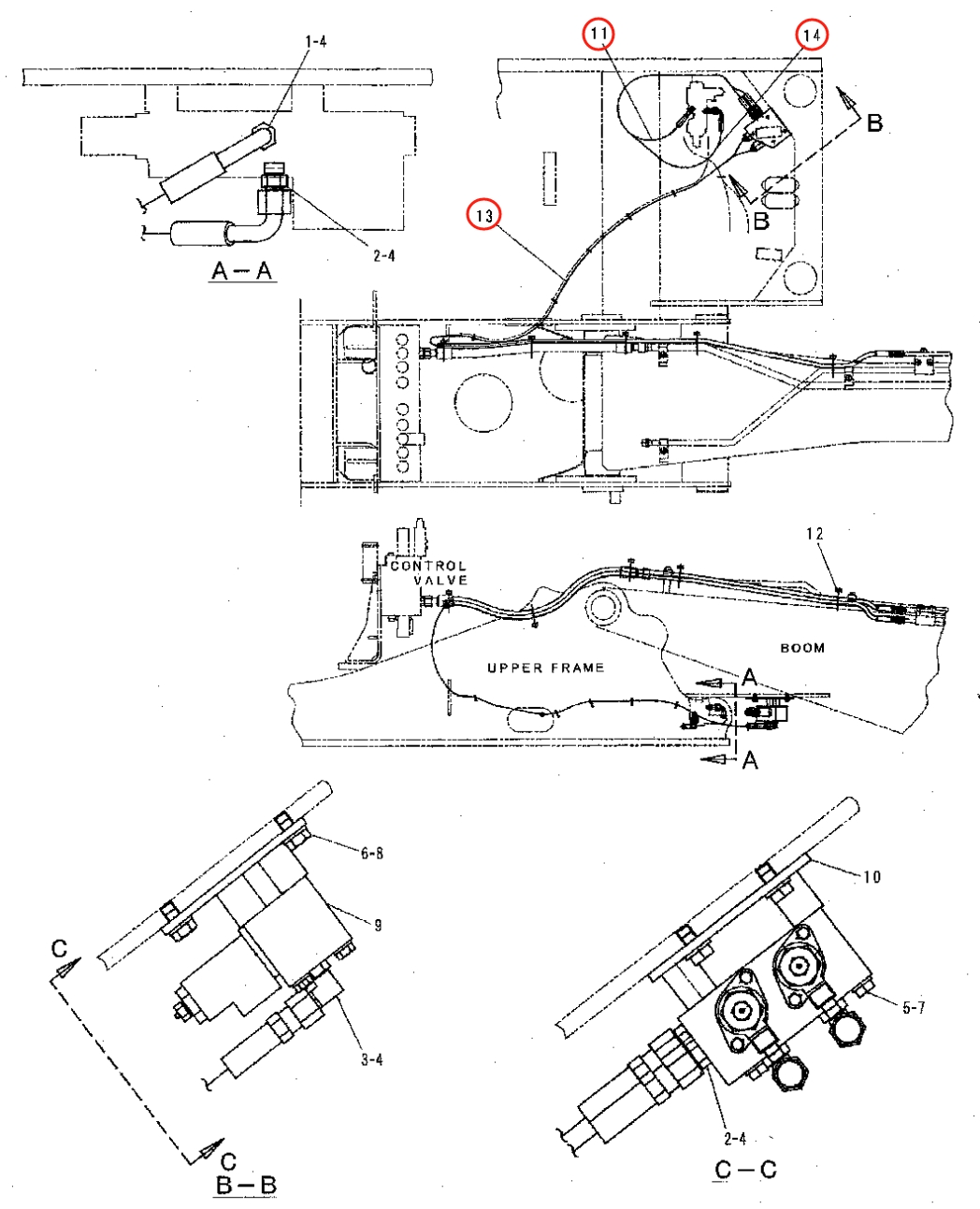

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 146-1292 before removing the hose.

Caterpillar CAT®312B installation diagram showing hydraulic hose 146-1292 at Pipe No. 13 — Caterpillar CAT®312BPart 146-1292 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 146-1292
Diagram pipe number: 13
Installation route: 踏板(快换)~大臂(快换)
Hose specification: DN10;1SN-6;15.7Mpa
Finished length: 4,000 mm
Working pressure: 15.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

For reference only. Confirm the actual hose before fabrication.
