Individual hose record
5W-7143 Hose Repair Specifications
Excavator · Caterpillar · CAT®212 · Solenoid Valve
Finished length1,950 mm
Locate this hose

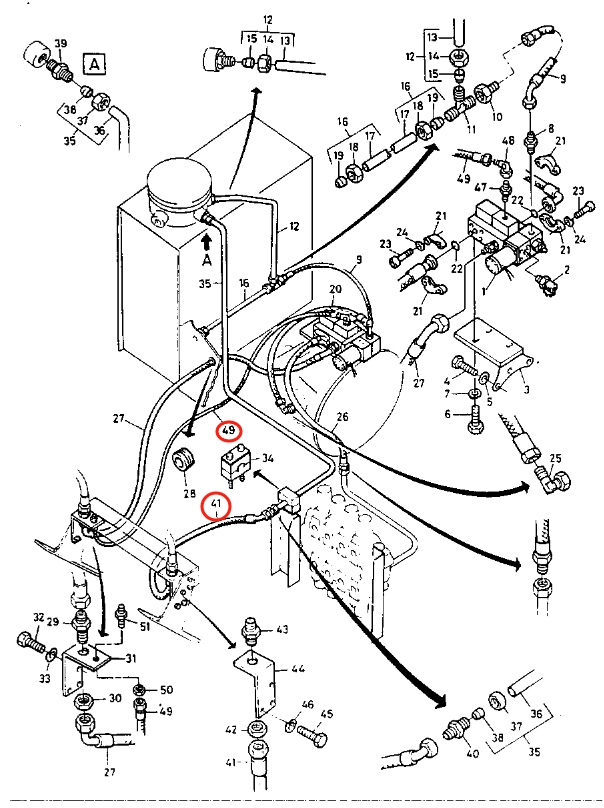

Installation diagram — Pipe No. 49
Locate Pipe No. 49 in the diagram, then confirm part number 5W-7143 before removing the hose.
Repair specifications
- Part number
- 5W-7143
- Diagram pipe number
- 49
- Installation route
- 电磁阀(分配阀右后)~过渡阀块(分配阀前)
- Hose specification
- DN6;2SN-4;40Mpa
- Finished length
- 1,950 mm
- Working pressure
- 40 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 公制内螺纹24°锥带O形圈-重型
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
