Individual hose record

2184-1100D237 Hose Preview

Excavator · Doosan · DX140LCR · Boom Assembly

Finished length1,350 mm

Repair specifications

Part number: 2184-1100D237
Diagram pipe number: 21
Installation route: Bucket cylinderOriginal Chinese: 铲斗油缸
Hose specification: DN19;4SH-12;42MPa
Finished length: 1,350 mm
Working pressure: 42 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
Quantity: 2

Manual diagrams

Installation and Exploded Views

A red marker identifies a reviewed hose location.

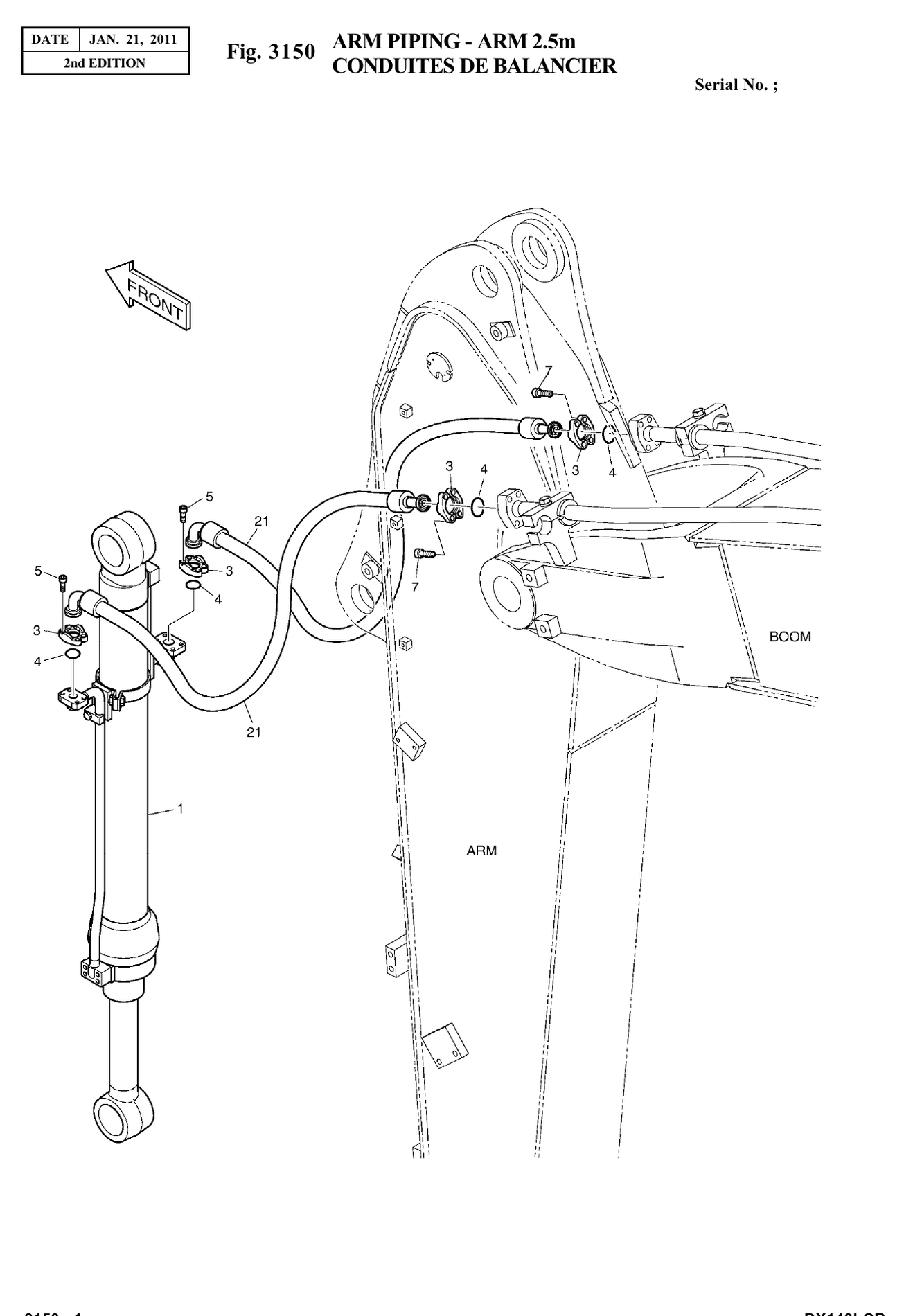

Installation diagram — Installation diagramUse this diagram to help identify the hose. Confirm the exact position and pipe number on the machine.Doosan DX140LCR Excavator Parts ManualManual page 340 · Printed page 3150-1 · Fig. 3150View full-size

For reference only. Confirm the actual hose before fabrication.
