- Length
- 847 mm
- Specification
- DN8;-5;17.5Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Individual hose record
8U-2993 Hose Repair Specifications
Excavator · Caterpillar · CAT®214B · Hydraulic Pump
Finished length541 mm
Locate this hose

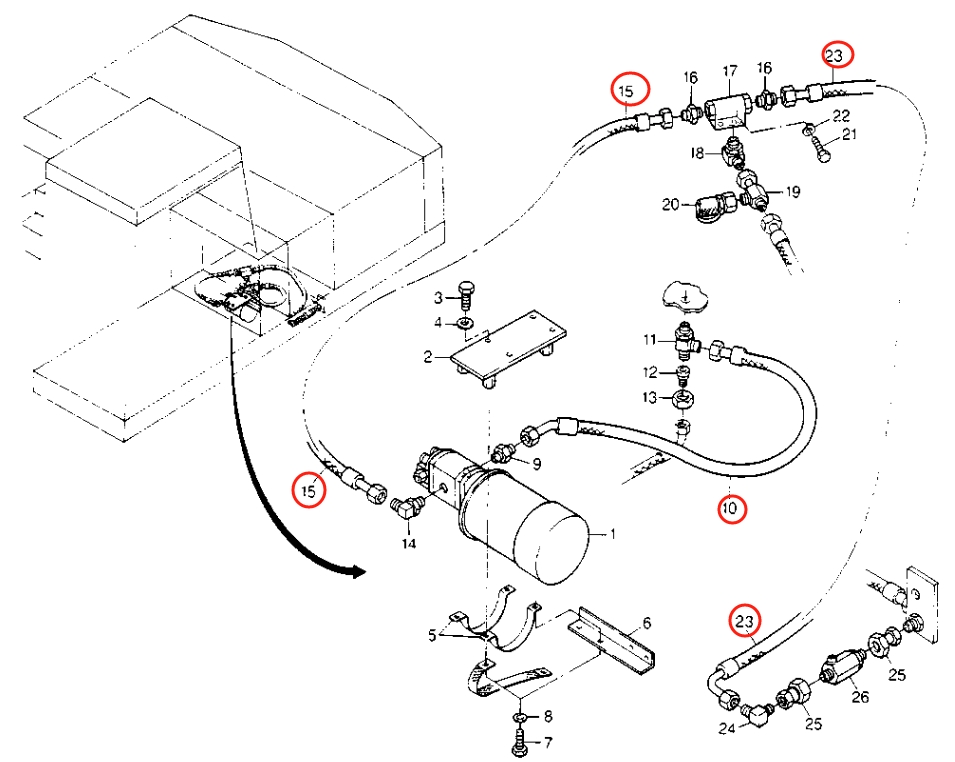

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number 8U-2993 before removing the hose.
Repair specifications
- Part number
- 8U-2993
- Diagram pipe number
- 15
- Installation route
- 液压泵~过渡阀块(连接液压泵)
- Hose specification
- DN10;2SN-6;33Mpa
- Finished length
- 541 mm
- Working pressure
- 33 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
