9D-5379 Hose Repair Specifications

Excavator · Caterpillar · CAT®215 · Control Valve

Finished length673 mm

Locate this hose

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 9D-5379 before removing the hose.

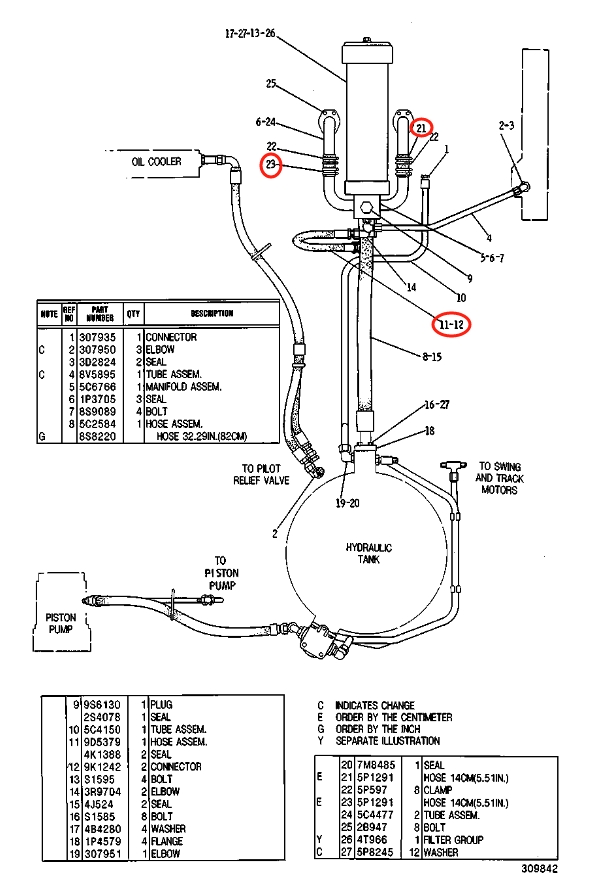

Caterpillar CAT®215 installation diagram showing hydraulic hose 9D-5379 at Pipe No. 11 — Caterpillar CAT®215Part 9D-5379 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: 9D-5379
Diagram pipe number: 11
Installation route: 分配阀~液压油箱
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 673 mm
Working pressure: 8.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
